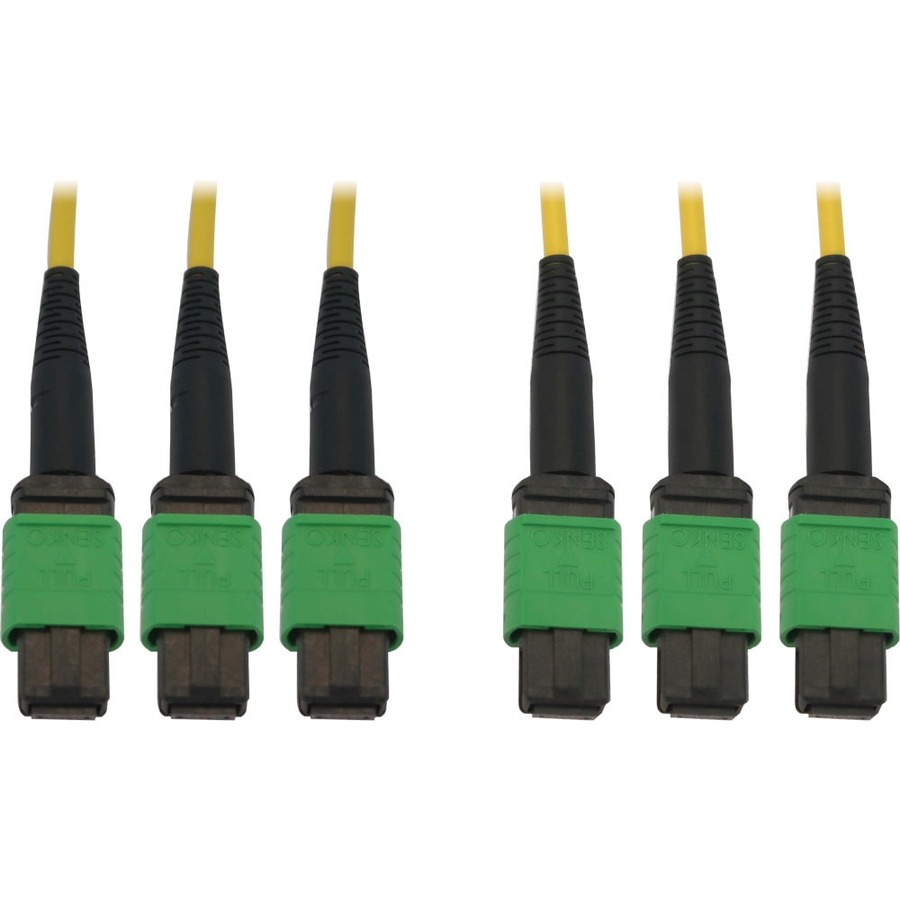

Eaton Tripp Lite Series 40/100G Singlemode 9/125 OS2 Fiber Optic Cable (3x8F MTP/MPO-APC F/F), LSZH, Yellow, 10 m (32.8 ft.)

Manufacturer: Eaton Corporation
Mfr. Part: N392B-10M-3X8AP

32.81 ft Fiber Optic Network Cable for Switch, Patch Panel, Network Device - First End: 3 x MTP/MPO Network - Female - Second End: 3 x MTP/MPO Network - Female - 400 Gbit/s - Trunk Cable - LSZH - 9/125 µm

Eaton Tripp Lite Series 40/100G Singlemode 9/125 OS2 Fiber Optic Cable (3x8F MTP/MPO-APC F/F), LSZH, Yellow, 10 m (32.8 ft.)

About This Product

Overview

40/100 GbE Cable Supports Higher Bandwidths Needed for High-Density Data Networking
As the amount of traffic in data networks grows, so does the need for devices and fiber cables to support higher bandwidths for high-density patching between data center MDFs and IDFs in enterprise installations. This singlemode 9/125 OS2 cable is an ideal choice for 100G Ethernet applications up to 100 meters (328 feet) at 1550 nm. It is also backward compatible with 10 Gb and 25 Gb networks, so you can future-proof your current application for an eventual upgrade to 100 Gb.

100% Tested for Low Insertion Loss and Back Reflection
The factory-terminated 8-fiber MTP/MPO APC connectors help minimize back reflection with low insertion loss. The connector's slim boot and green housing allow easy one-handed installation and removal of the cable.

Yellow Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
The OS2-rated cable has a yellow jacket to identify it as singlemode in a crowded patch panel or switch and prevent it from becoming accidentally disconnected. The round low-smoke zero-halogen (LSZH) jacket limits the amount of toxic smoke emitted in case of combustion, making it suitable for poorly ventilated areas.

  • OS2-rated cable recommended for 100 Gb speeds up to 100 meters (@ 1550 nm)
  • MTP/MPO APC connectors minimize back reflection with low insertion loss
  • Backward compatible with 10/25/40 Gb networks to facilitate future-proofing
  • Yellow LSZH jacket allows fast, easy ID in a crowded switch or patch panel

Quick Specifications

Product Model
N392B-10M-3X8AP
Product Type
Network Cable
Cable Type
Fiber Optic
Cable Characteristic
Trunk Cable
Fiber Optic Mode
Single-mode
Fiber Optic Cable Core/Cladding Specification
9/125 µm
Cable Length
32.81 ft
Connector Type on First End
MTP/MPO Network - Female
