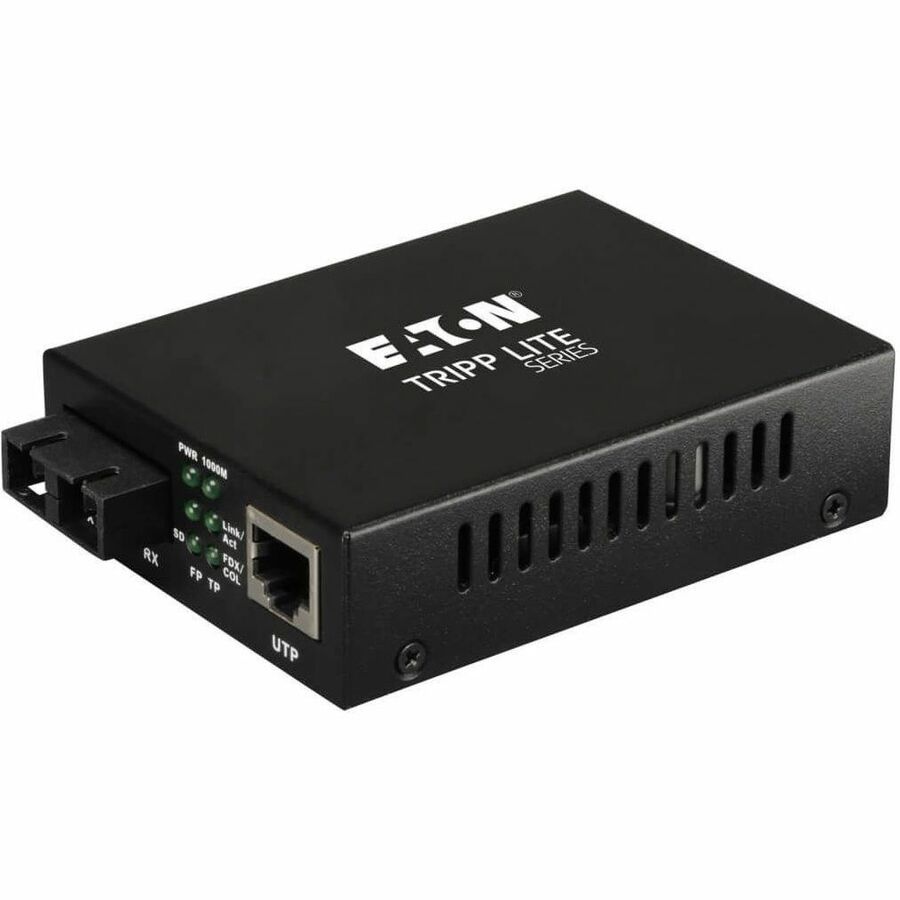

Tripp Lite by Eaton Gigabit Multimode Fiber to Ethernet Media Converter 10/100/1000 to 1000BaseLX SC 2km 1310nm
Manufacturer: Eaton Corporation
Mfr. Part: N785-001-SC
1 x Network (RJ-45) - 1 x SC Ports - 10/100/1000Base-T, 1000Base-FX - External
About This Product
Overview
Tripp Lite's N785-001-SC 10/100/1000 Gigabit Media Converter is an economical way to extend the distance ( up to 2Km ) of network nodes by converting Cat5/6 UTP cables to Fiber Optic. With advanced features such as selectable half or full duplex operation on the fiber port, 1310 nm wavelength, automatic MDI/MDI-X configuration and link fault pass-through, the N785-001-SC supplies superior signal quality and gives you ultimate network control. The N785-001-SC is compatible with both 62.5/125 and 50/125 multimode fiber cable.
- Converts UTP Gigabit Ethernet to Fiber Optic
- Cost-effective solution for extending network distance up to 2 km
- Automatic MDI/MDI-X configuration
- Half or Full Duplex Operation
- Auto-Senses 10 / 100 / 1000
Quick Specifications
- Product Model
- N785-001-SC
- Product Type
- Transceiver/Media Converter
- Total Number of Ports
- 2
- Network (RJ-45)
- Yes
- Number of Network (RJ-45) Ports
- 1
- Number of SC Ports
- 1
- Maximum Distance Supported
- 2 km
- Fiber Optic Cable Core/Cladding Specification
- 62.5/125 µm 50/125 µm
