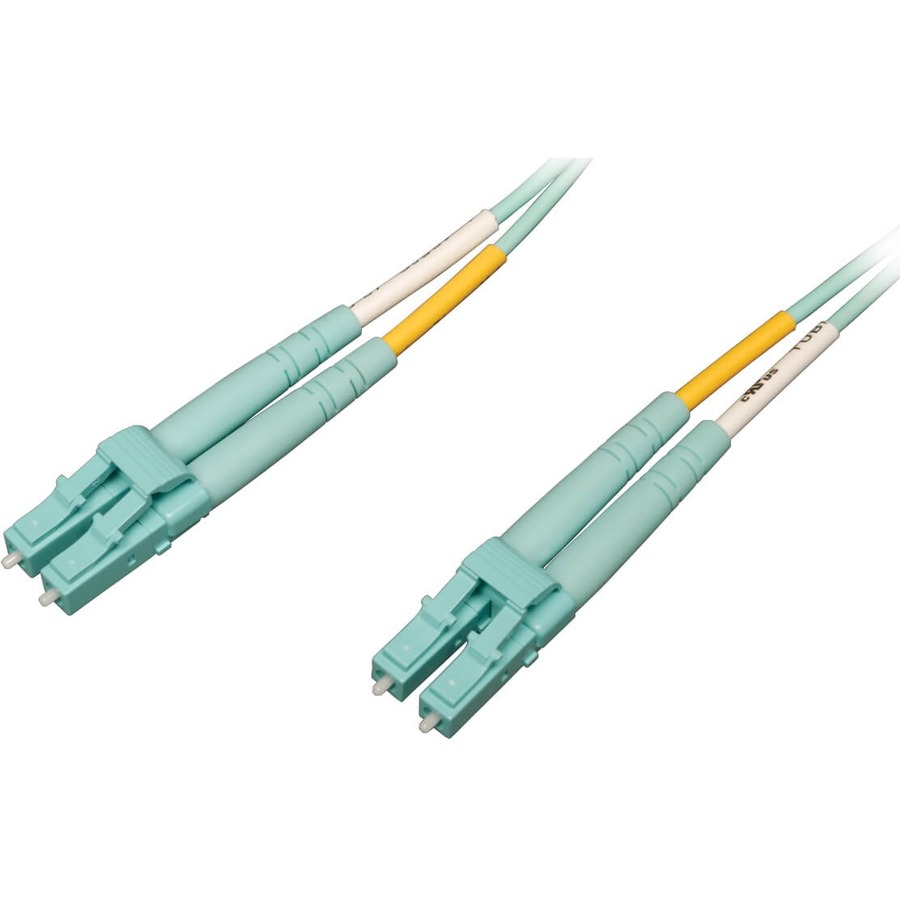

Tripp Lite by Eaton 10Gb/100Gb Duplex Multimode 50/125 OM4 LSZH Fiber Patch Cable (LC/LC) - Aqua 2M (6 ft.)
LSZH Fiber Patch Cable (LC/LC) - Aqua, 2M (6-ft.)
About This Product
Overview
Tripp Lite's new OM4 enter it-Optimized Multimode Fiber Laser (LOMMF) "Aqua" cables, For Use With 40/100Gb Ethernet applications. These new technology, 50/125um, LC / LC Fiber Optic cables, three times the Provide Nearly bandwidth multimode fiber over 62.5um Conventional, With performance rivaling That of Singlemode cable, at a much reduced cost. Cable LOMMF allows serial transmission over extended 40/100Gb distances in the 850nm wavelength window, where, low-cost Vertical Cavity Surface Emitting Lasers (VCSELs) enable a cost-effective, high-bandwidth solution. Ideally suited for LOMMF is LAN's, SAN's, and high-speed parallel Interconnects for head-ends, central offices, and data centers. Tripp Lite warrants this product to be free from defects in material and workmanship for Life.
- Designed for 40/100-Gig Ethernet applications...OM4 Rated
- Backward compatible with existing 50/125 fiber
- Max 40/100Gb distance of 300 meters @850nm
- Low-Smoke, Zero Halogen (LSZH) Aqua jacket
Quick Specifications
- Product Model
- N820-02M-OM4
- Product Type
- Network Cable
- Cable Type
- Fiber Optic
- Cable Characteristic
- Patch Cable
- Fiber Optic Mode
- Multi-mode
- Fiber Optic Cable Core/Cladding Specification
- 50/125 µm
- Cable Length
- 6.60 ft
- Connector Type on First End
- LC Network - Male
