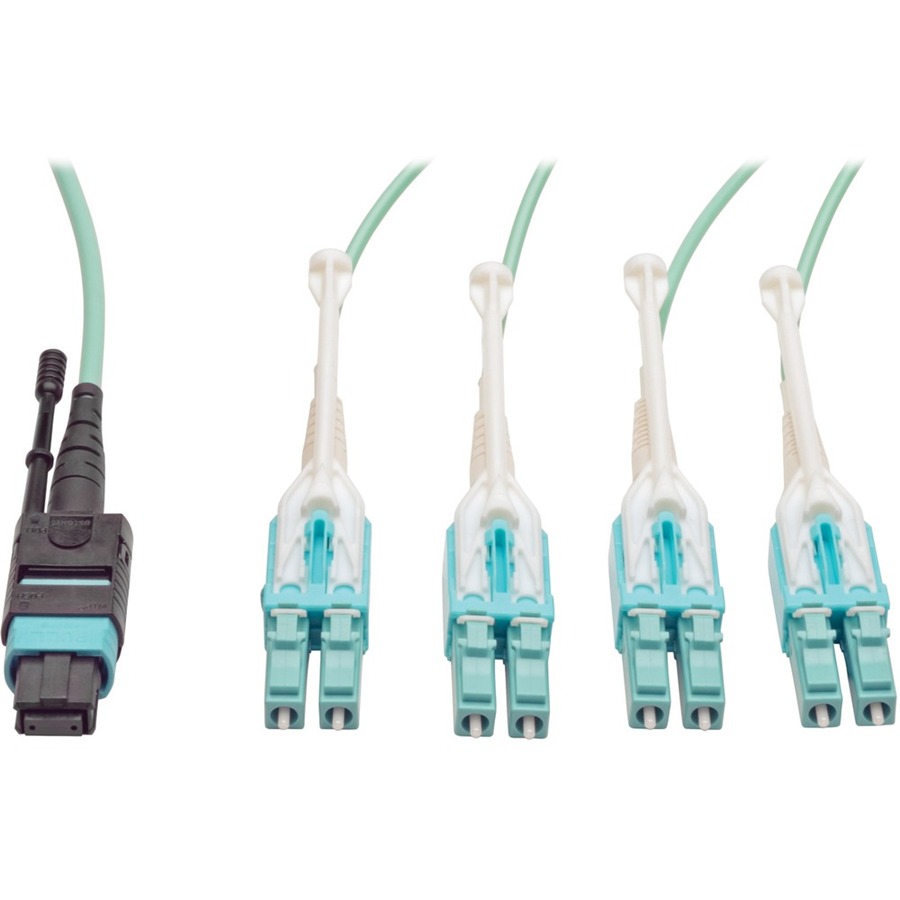

Tripp Lite by Eaton MTP/MPO Fan-out Cable with Push/Pull Tab Connectors MTP/MPO to 4xLC 40GbE 40GBASE-SR4,OM3 Plenum-rated - Aqua 1M (3.28 ft.)
3.30 ft Fiber Optic Network Cable for Network Device - First End: MTP Network - Second End: 8 x LC Network - Fan-out Cable - Aqua
About This Product
Overview
Tripp Lite's Premium MPO/MTP Multi-Fiber cabling system is ideally suited for a high density environment that demands space saving and reduced cable management solutions. MPO/MTP fan-outs support various connections from multi-fiber to single-fiber out. N844-xxM-8LC-P cables utilize 8 fibers to fully transmit 40GBASE-SR, 4 fibers in each direction transmitting at 10Gbps. It includes push/pull tab connectors for maximum accessibility; install or remove the cable with one hand without needing additional tools. Its slim, uniboot design provides space savings, while its premium-grade ceramic ferrules are designed for 10GbE and faster applications. Backward compatible with existing 50/125 fiber. Plenum rated jacket.
- MTP / MPO to 8 x LC Fan-out Cable
- Push/Pull tab connectors offer maximum accessibility in high density installations; install / remove with one hand without needing additional tools
- Slim uniboot design saves space and makes cables easier to manage
- Premium-grade ceramic ferrule designed specifically for 10GbE and faster applications
- Sturdy plastic housing for long-lasting durability
- OM3, 40GbE rated, 40GBASE-SR4
Quick Specifications
- Product Model
- N844-01M-8LC-PT
- Product Type
- Network Cable
- Cable Type
- Fiber Optic
- Cable Characteristic
- Fan-out Cable
- Fiber Optic Mode
- Multi-mode
- Fiber Optic Cable Core/Cladding Specification
- 50/125 µm
- Cable Length
- 3.30 ft
- Connector Type on First End
- MTP Network
