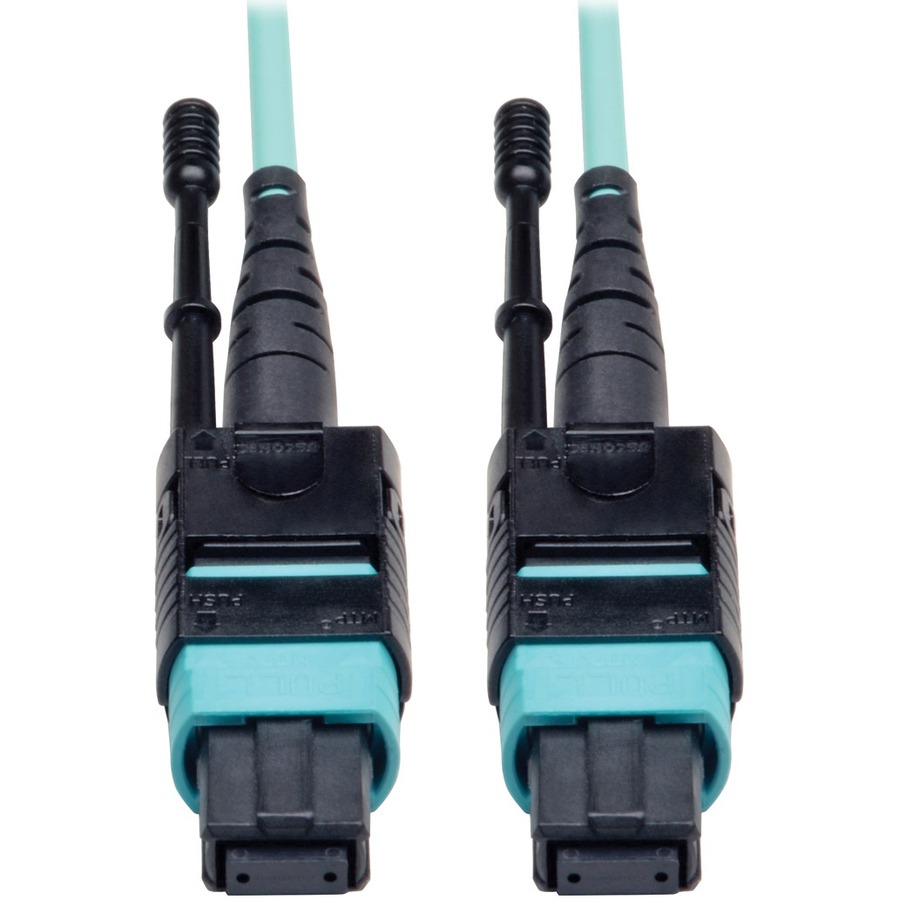

Eaton Tripp Lite Series MTP/MPO Patch Cable with Push/Pull Tabs, 12 Fiber, 40GbE, 40GBASE-SR4, OM3 Plenum-Rated - Aqua, 3M (10 ft.)
Manufacturer: Eaton Corporation
Mfr. Part: N844-03M-12-P
12 Fiber,40GbE, 40GBASE-SR4,OM3 Plenum-rated - Aqua, 3M (10-ft.)"
About This Product
Overview
Tripp Lite MTP/MPO to MTP/MPO fiber patch cables allow high-density connections between network equipment in telecommunication rooms. They use a simple push-pull latching mechanism for easy and intuitive insertion and removal. The MTP/MPO connector is approximately the same size of a SC connector but since it can accommodate 12 fibers, it provides up to 12 times the density, thereby offering savings in circuit card and rack space. N844 series cables are manufactured using laser-optimized, 50/125, OM3 multimode cable, and support speeds up to 40GbE.
- Hi-density MTP/MPO 12-fiber connectors for reduced cabling
- Push/Pull tab connectors offer maximum accessibility in high density installations; install / remove with one hand
- OM3 rated 50/125 Multimode
- Supports to 40GbE speeds
Quick Specifications
- Product Series
- N844
- Product Model
- N844-03M-12-P
- Product Type
- Network Cable
- Cable Type
- Fiber Optic
- Cable Characteristic
- Patch Cable
- Fiber Optic Mode
- Multi-mode
- Fiber Optic Cable Core/Cladding Specification
- 50/125 µm
- Cable Length
- 10 ft
