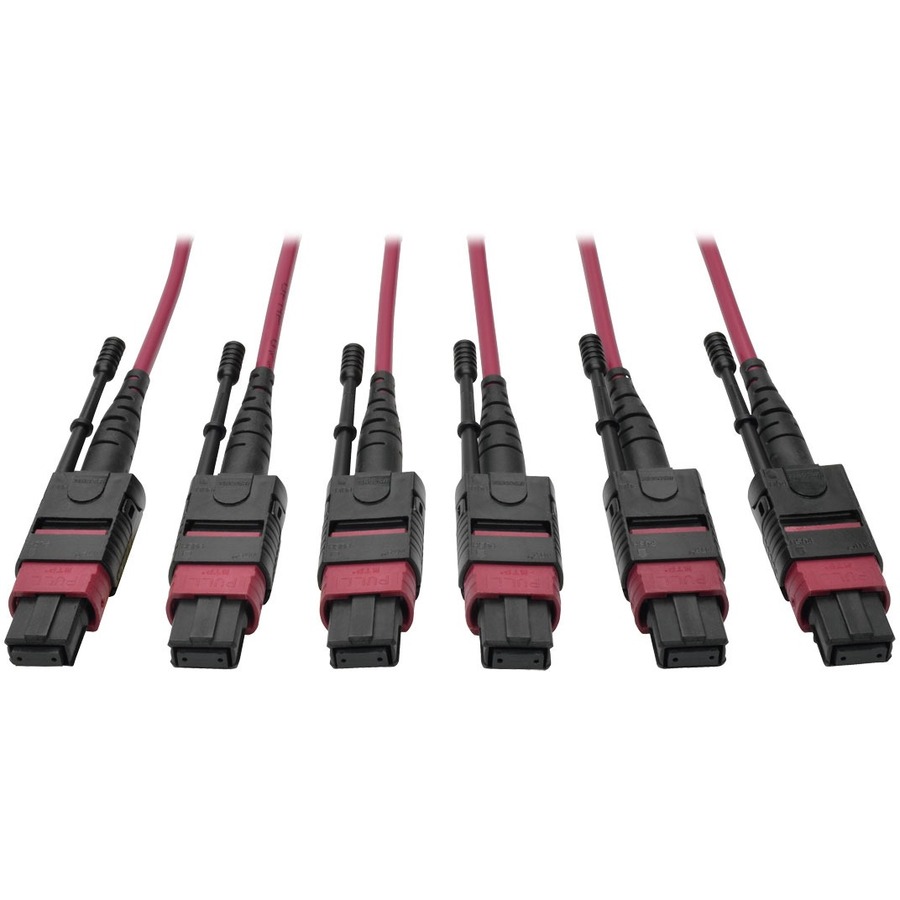

Tripp Lite by Eaton MTP/MPO Multimode Base-8 Trunk Cable 24-Strand 40GB/100GB 40/100GBASE-SR4 OM4 Plenum-Rated (3xF/3xF) Push/Pull Tab Magenta 61 m (200 ft.)
Manufacturer: Eaton Corporation
Mfr. Part: N858-61M-3X8-MG
Fiber Optic for Network Device - 12.50 GB/s - 200.13 ft - 3 x MTP/MPO Female Network - 3 x MTP/MPO Female Network - 50/125 µm - Magenta
About This Product
Overview
The 61-meter (200-foot) N858-61M-3X8-MG MTP/MPO Multimode Base-8 Trunk Cable supports 40/100 Gb Ethernet speeds and is designed for high-density connections between network equipment in telecommunication rooms and data centers.With three female MTP/MPO connectors on each end, this OM4-rated multimode fiber optic cable is recommended for high-density fiber patching between data center MDFs (main distribution frames) and IDFs (intermediate distribution frames). It's colored magenta for instant identification as an OM4 cable. Push/pull tab connectors are easily accessible in high-density data center applications and make the cable easy to install and remove with one hand. The 8-fiber MTP/MPO connectors are about the same size as SC connectors, but are 12 times denser, freeing up rack space for other cables. Optimized for QSFP+ 40GBASE-SR4 and QSFP28 100GBASE-SR4 networks, this cable is tested for low insertion loss and back reflection on every connector and attenuation loss that meets or exceeds current standards. The 5.6-millimeter ruggedized plenum-rated jacket and bend-insensitive fiber are perfect for connecting high-speed network components in ceilings, walls and ducts.
Features
OM4-Rated for 40/100 Gb Ethernet Applications
- Designed to extend high-density connections between network equipment in telecom rooms and data centers
- Recommended for patching between data center MDFs and IDFs
- Optimized for QSFP+ 40GBASE-SR4 and QSFP28 100GBASE-SR4 networks
- Magenta-colored for identification as an OM4 cable
MTP/MPO Connectors with Push/Pull Tabs
- 8-fiber female connectors 12 times denser than SC connectors
- Push/pull tab connectors easy to install and remove with one hand
- 100% tested for low insertion loss and back reflection
Error-Free Signal Transfer
- 50/125 duplex glass fiber construction
- Plenum-rated jacket and bend-insensitive fiber perfect for ceilings, walls and ducts
- Offers dependable network connectivity for stable performance, supporting uninterrupted operations and consistent data flow across connected systems
- Features fiber optic cable type to deliver high-bandwidth data transmission with minimal signal loss, ensuring optimal performance in network setups
- Features MTP/MPO Network - Female connector, permitting you to establish a secure link with a network device for dependable functionality
Quick Specifications
- Product Model
- N858-61M-3X8-MG
- Product Type
- Network Cable
- Cable Type
- Fiber Optic
- Fiber Optic Mode
- Multi-mode
- Fiber Optic Cable Core/Cladding Specification
- 50/125 µm
- Cable Length
- 200.10 ft
- Connector Type on First End
- MTP/MPO Network - Female
- Connector on First End Details
- 3 x MTP/MPO Network - Female
