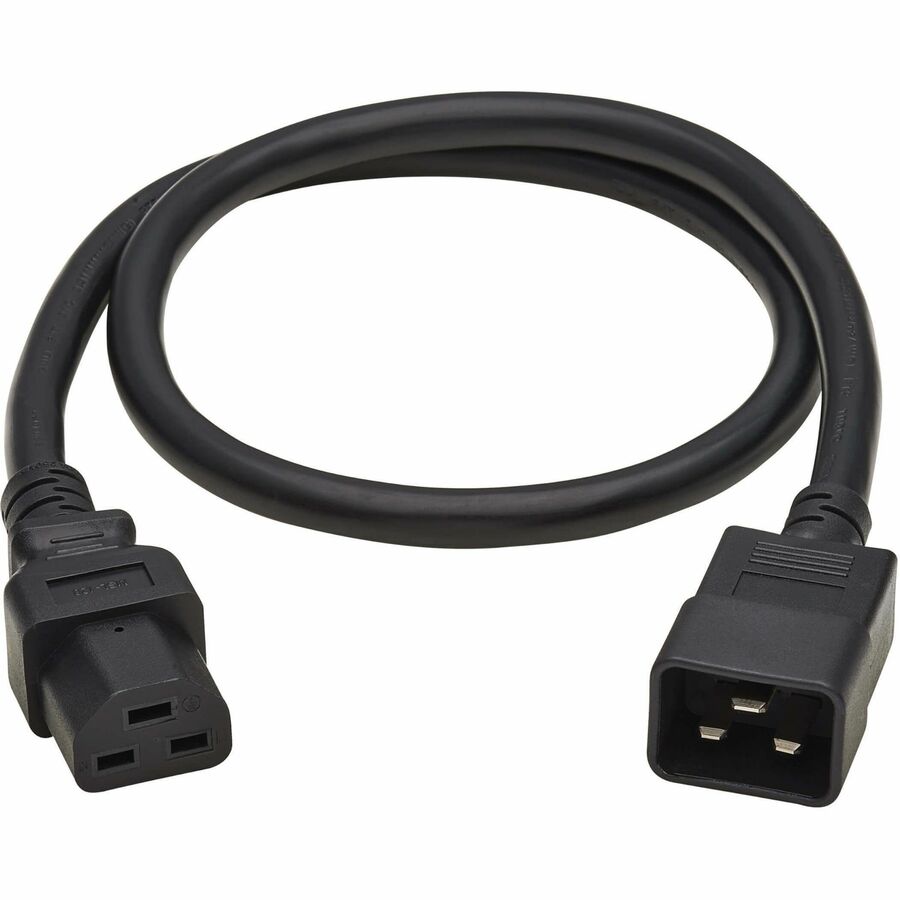

Eaton Tripp Lite Series Power Cord, C20 to C21 - Heavy-Duty, 20A, 250V, 12 AWG, 4 ft. (1.2 m), Black
For Network Switch, PDU, UPS, Switch, Server, Network Device, Rack, Blade Server, Router - 12 Gauge - 250 V AC / 20 A - Black - 4 ft Cord Length - IEC 60320 C20 / IEC 60320 C21 - North America
About This Product
Overview
Features | 20A C20-to-C21 Power Cable for Network Devices That Require a Heavy-Gauge Connection
This heavy-duty cord features 12 AWG wire suitable for high power connections, making it a reliable solution for large server applications that require a higher-rated, heavier-gauge cable, including AI/machine-learning data centers. The four-foot (1.2-meter) length helps reduce cable clutter by providing a tailor-made fit between the device and the PDU or UPS in a crowded rack enclosure.
Recommended for High-Temperature Environments
The P035-004 can be used to connect a blade server, large router or network switch with a C22 inlet, usually found on high-powered, high-temperature (overall operating temperature maximum 105°C/221°F) equipment, to a PDU or UPS system. It's an ideal upgrade to a power cord with improved temperature threshold for data center applications in which temperature control and fire safety are high priorities.
- Recommended for powering switches, servers and other high-powered network devices
- 20A C21/C20 connectors support temperatures up to 221°F (105°C) frequent in rack enclosures
- Thick 12 AWG wire manages high power levels required for larger equipment
- 4 ft. length allows flexibility in placing devices within the rack while avoiding cable clutter
- This product is covered by a Lifetime Limited Warranty
Quick Specifications
- Product Model
- P035-004
- Product Type
- Standard Power Cord
- First End Connector Type
- IEC 60320 C20
- First End Connector Detail
- 1 x 3-pin IEC 60320 C20 Male
- Second End Connector Type
- IEC 60320 C21
- Second End Connector Detail
- 1 x 3-pin IEC 60320 C21 Female
- Device Supported
- Network Switch PDU UPS Switch Server Network Device Rack Blade Server Router
- Localization
- North America
