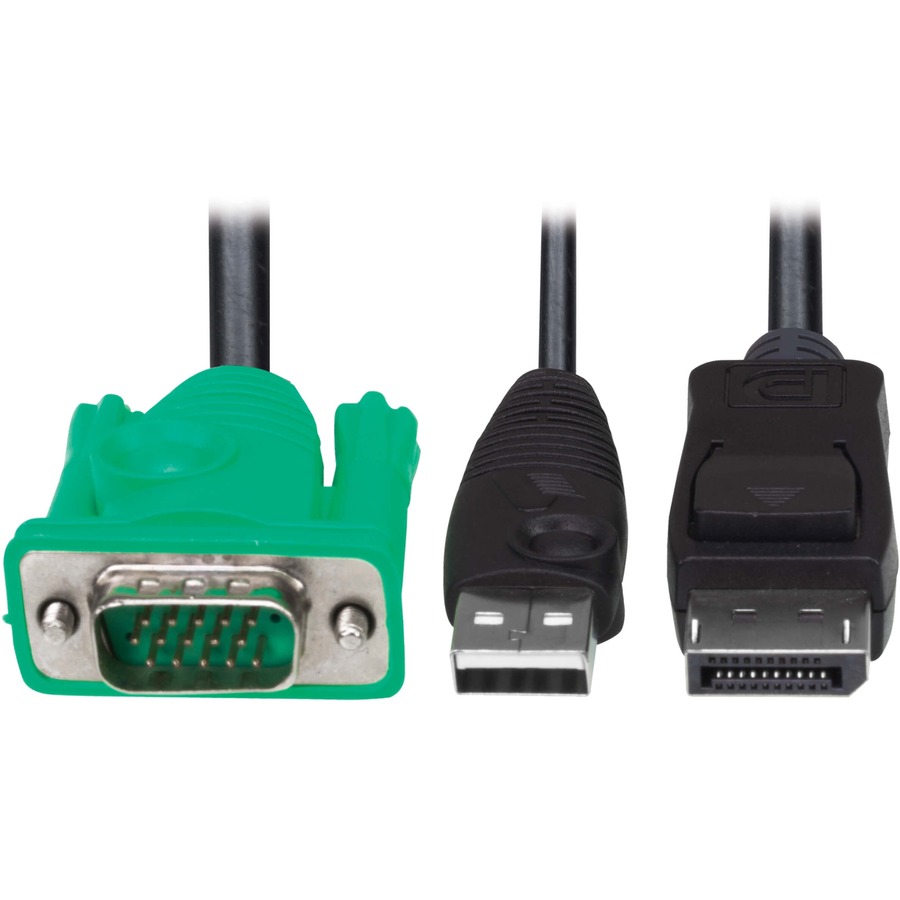

Tripp Lite by Eaton VGA to DisplayPort and USB-A Adapter Cable Kit for Tripp Lite by Eaton B020-U and B022-U KVM, 6 ft. (1.8 m)
6 ft KVM Cable for KVM Switch, Server, Computer - First End: 1 x 15-pin HD-15 - Male - Second End: 1 x DisplayPort 1.1 Digital Audio/Video - Male, 1 x USB 2.0 Type A - Male - 480 Mbit/s - Supports up to 1920 x 1080 - VW-1
About This Product
Overview
Connect Your Computer's DisplayPort and USB Ports to a Tripp Lite KVM Switch
This convenient cable kit saves you money by combining necessary cables into one bunch. For use with Tripp Lite B020-U and B022-U KVM switches, the P778-006-DP features male DisplayPort and USB-A connectors for your server or computer and a male HD15 connector for the KVM. The DisplayPort 1.1-compliant cable supports HD resolutions up to 1920 x 1080 (1080p) at 60 Hz with 36-bit Deep Color. The USB 2.0 cable supports 480 Mbps speeds. The bus-powered cable kit requires no software or external power adapter. A sliding switch on the back of the housing lets you decide between USB power mode or USB + DP power mode with LEDs indicating which mode you have chosen.
- Supports HD video resolutions up to 1920 x 1080 (1080p) @ 60 Hz
- LEDs indicate at a glance which power mode the cable kit is using
- Supports USB 2.0 speeds up to 480 Mbps for reliable data transfers
- Plug and play with no software or external power supply required
- Compatible only with select Tripp Lite B020-U and B022-U Series KVM switches
- This product is covered by a Lifetime Limited Warranty
Quick Specifications
- Product Model
- P778-006-DP
- Product Type
- KVM Cable
- Cable Length
- 6 ft
- Connector Type on First End
- HD-15 - Male
- Connector on First End Details
- 1 x 15-pin HD-15 - Male
- Connector Type on Second End
- DisplayPort 1.1 Digital Audio/Video - Male USB 2.0 Type A - Male
- Connector on Second End Details
- 1 x DisplayPort 1.1 Digital Audio/Video - Male 1 x USB 2.0 Type A - Male
- Jacket Type
- VW-1
