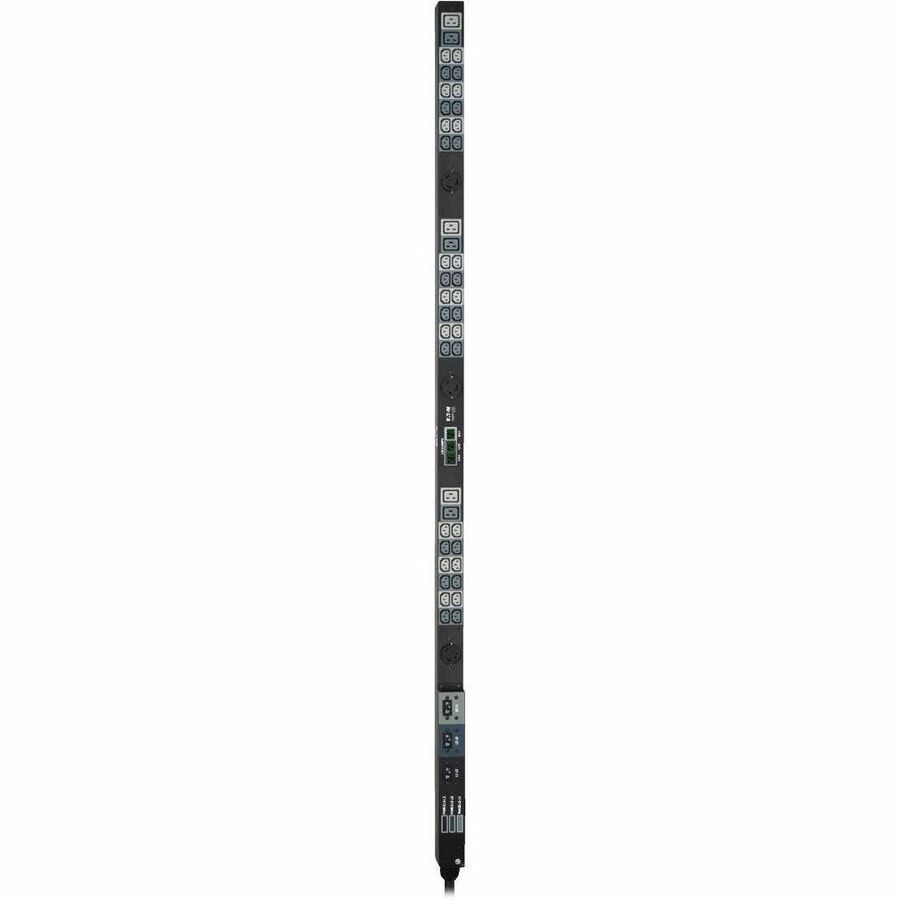

Eaton Tripp Lite Series 14.4kW 3-Phase Local Metered PDU, 208V Outlets (36 C13, 6 C19, 3 L6-30R) Hubbell 50A CS8365C, 6 ft. (1.83 m) Cord, 0U Vertical, TAA
Manufacturer: Eaton Corporation
Mfr. Part: PDU3MV6H50A
6 x IEC 60320 C19, 36 x IEC 60320 C13, 3 x NEMA L6-30R - 14.40 kVA - Vertical Rackmount˘
About This Product
Overview
Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
- Metered 14.4kW 3 Phase 208V PDU; 70 in. / 178cm 0U vertical rackmount
- Reports load current per-phase via set of 3 built-in current meters
- Hubbell CS8365C 50A (3P+E) 208V 3 phase input; 6 ft. / 1.8m line cord
- 45 208V outlets total (36 C13, 6 C19, 3 L6-30R)
- Toolless button-mount installation; cord retention brackets included
- Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases
Quick Specifications
- Product Series
- Metered
- Product Model
- PDU3MV6H50A
- Product Type
- PDU
- Plug/Connector Type
- Hubbell CS8365C
- Receptacle Type
- IEC 60320 C19 IEC 60320 C13 NEMA L6-30R
- Receptacle Detail
- 6 x IEC 60320 C19 36 x IEC 60320 C13 3 x NEMA L6-30R
- Protection Type
- Overload Protection
- Input Voltage
- 230 V AC
