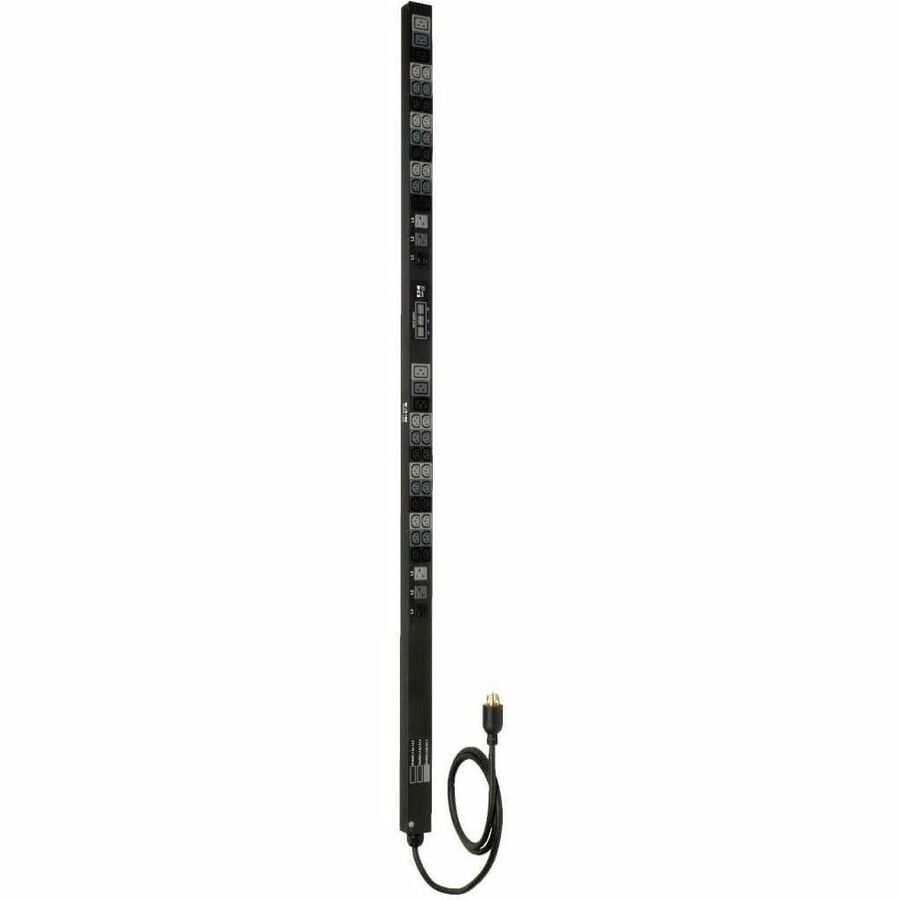

Tripp Lite by Eaton PDU 5.7kW 3-Phase Local Metered PDU 208/120V Outlets (36 C13 6 C19 6 5-15/20R) L21-20P 6 ft. (1.83 m) Cord 0U Vertical TAA
Manufacturer: Eaton Corporation
Mfr. Part: PDU3MV6L2120
36 x IEC 60320 C13, 6 x IEC 60320 C19, 6 x NEMA 5-15/20R - 5.70 kVA - Vertical Rackmount, Toolless-mount"
About This Product
Overview
Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
- Metered 5.7kW 3 Phase 208/120V PDU; 70 in. / 178cm 0U vertical rackmount
- Reports input current per-phase via built in current meters
- NEMA L21-20P (3P+N+E) 208V 3 phase input; 6 ft. / 1.8m line cord
- 48 outlets total; 36 C13 (208V), 6 C19 (208V) & 6 NEMA 5-15/20R (120V)
- Toolless button-mount installation; cord retention brackets included
- TAA Compliant
Quick Specifications
- Product Series
- Metered
- Product Model
- PDU3MV6L2120
- Product Type
- PDU
- Plug/Connector Type
- NEMA L21-20P
- Receptacle Type
- IEC 60320 C13 IEC 60320 C19 NEMA 5-15/20R
- Receptacle Detail
- 36 x IEC 60320 C13 6 x IEC 60320 C19 6 x NEMA 5-15/20R
- Input Voltage
- 230 V AC
- Output Voltage
- 120 V AC 208 V AC
