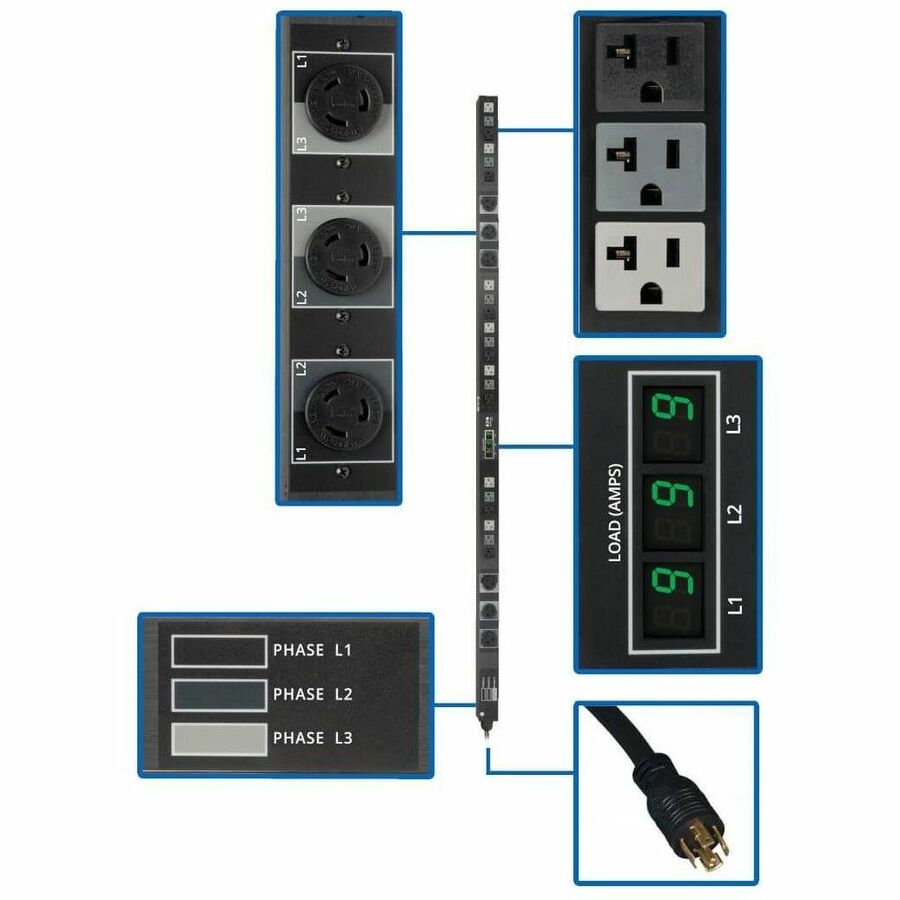

Eaton Tripp Lite Series 5.7kW 3-Phase Local Metered PDU, 208/120V Outlets (21 5-15/20R, 6 L6-20R), L21-20P, 6 ft. (1.83 m) Cord, 0U Vertical, TAA
Manufacturer: Eaton Corporation
Mfr. Part: PDU3MV6L2120B
6 x NEMA L6-20R, 21 x NEMA 5-15/20R - 5.70 kVA - Vertical Rackmount, Toolless-mount
About This Product
Overview
Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
- Metered 5.7kW 3 Phase 208/120V PDU; 70 in. / 178cm 0U vertical rackmount
- Reports input current per-phase via built in current meters
- NEMA L21-20P (3P+N+E) 208V 3 phase input; 6 ft. / 1.8m line cord
- 27 outlets total; 21 5-15/20R (120V), 6 L6-20R (208V)
- Toolless button-mount installation; cord retention brackets included
- Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases
Quick Specifications
- Product Series
- Metered
- Product Model
- PDU3MV6L2120B
- Product Type
- PDU
- Plug/Connector Type
- NEMA L21-20P
- Receptacle Type
- NEMA L6-20R NEMA 5-15/20R
- Receptacle Detail
- 6 x NEMA L6-20R 21 x NEMA 5-15/20R
- Input Voltage
- 230 V AC
- Output Voltage
- 120 V AC 208 V AC
