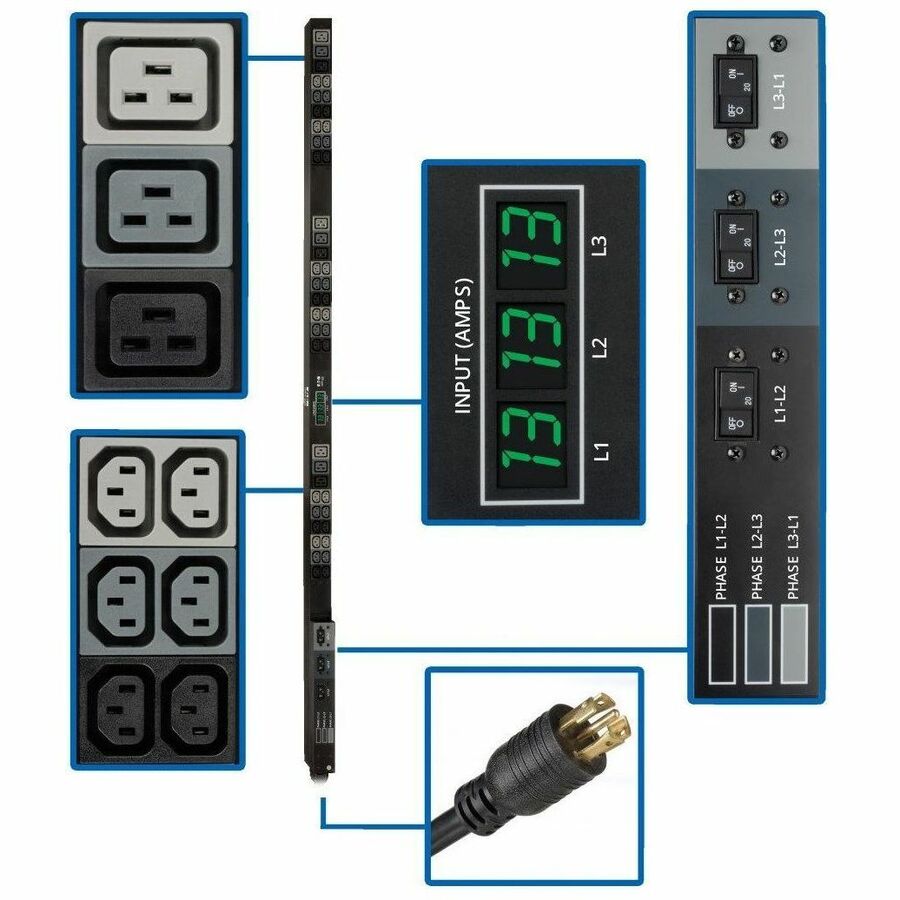

Tripp Lite by Eaton PDU 3-Phase Local Metered PDU 8.6 kW 45 208V outlets (36 C13 9 C19) 6 ft. (1.83 m) NEMA L21-30P Input connection TAA Compliant
Manufacturer: Eaton Corporation
Mfr. Part: PDU3MV6L2130A
Vertical Rackmount, Toolless-mount
About This Product
Overview
Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
- Metered 8.6kW 3 Phase 208V PDU; 70 in. / 178cm 0U vertical rackmount
- Reports voltage and load per-phase via set of 3 digital current displays
- NEMA L21-30P (3P+N+E) 208V 3 phase input, 6 ft. / 1.8m line cord
- 45 208V outlets (36 C13, 9 C19) with included plug-lock cord retention sleeves
- Toolless button-mount installation, TAA Compliant
Quick Specifications
- Product Series
- Metered
- Product Model
- PDU3MV6L2130A
- Product Type
- PDU
- Plug/Connector Type
- NEMA L21-30P
- Receptacle Type
- IEC 60320 C13 IEC 60320 C19
- Receptacle Detail
- 36 x IEC 60320 C13 9 x IEC 60320 C19
- Protection Type
- Overload Protection
- Input Voltage
- 230 V AC
