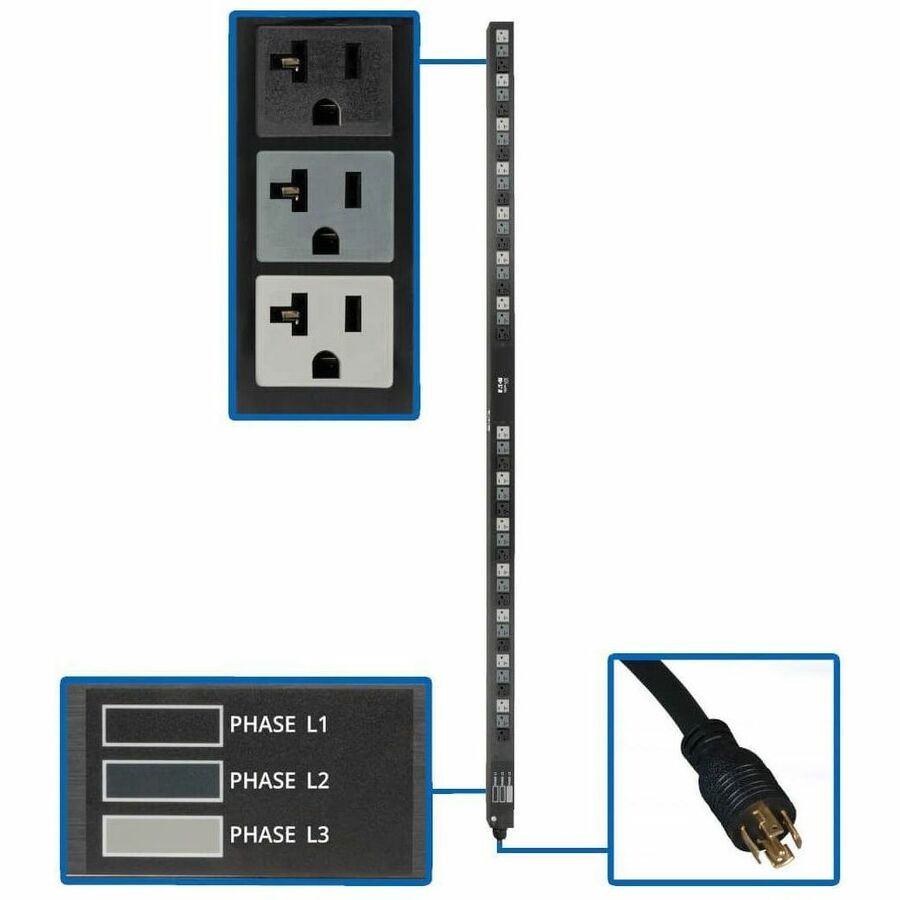

Eaton Tripp Lite Series 5.7kW 3-Phase Basic PDU - 42 NEMA 5-15/20R 120V Outlets, 208V L21-20P Input, 6 ft. Cord, 70 in. 0U Rack

Manufacturer: Eaton Corporation
Mfr. Part: PDU3V6L2120LV

Basic - NEMA L21-20P - 42 x NEMA 5-15/20R - 230 V AC - 0U - Vertical/Toolless - Rack-mountable - TAA Compliant

Eaton Tripp Lite Series 5.7kW 3-Phase Basic PDU - 42 NEMA 5-15/20R 120V Outlets, 208V L21-20P Input, 6 ft. Cord, 70 in. 0U Rack

About This Product

Overview

3-Phase 120V PDU Distributes Network-Grade Power to Multiple Loads
This basic PDU is an ideal no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Recommended for small to mid-sized data centers, computer rooms and network closets, the PDU3V6L2120LV features 42 NEMA 5-15/20R outlets in three single-phase output load banks for connecting equipment. A six-foot (1.8-meter) cord with NEMA L21-20P 3-phase input plug connects to your facility's AC power source, generator or protected UPS system to distribute power to connected loads.

Easy to Install Vertically in an EIA-Standard 19 in. Rack
The 70-inch 0U PDU's all-metal housing mounts vertically using the pre-installed toolless mounting buttons or the included brackets. Spare buttons are also included. Use the included PDUMVROTATEBRKT kit to install the PDU with outlets facing the rear for better airflow or equipment access. Cable retention brackets keep power cords organized and your rack free of clutter. The PDU's switchless design helps prevent an accidental shutdown, which could lead to costly downtime.

TAA-Compliant for GSA Schedule Purchases
The PDU3V6L2120LV is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

  • Provide circuit protection and easy configuration for trouble-free access
  • With basic PDU it becomes the easiest way to distribute facility UPS or generator power to multiple rack loads
  • NEMA 5-15/20R receptacle type to ensure maximum usability and reliable power output
  • Three Phase phase PDU provides optimal power output with added usability
  • NEMA L21-20P plug/connector type for reliable, productive connectivity and optimal power output
  • 230 V AC input voltage for better reliance and maximum dependability
  • 120 V AC output voltage for better reliance and maximum usability

Quick Specifications

Product Model
PDU3V6L2120LV
Product Type
PDU
PDU Type
Basic
Phase
Three Phase
Plug/Connector Type
NEMA L21-20P
Receptacle Type
NEMA 5-15/20R
Receptacle Detail
42 x NEMA 5-15/20R
Protection Type
Accidental Power Shutdown Overload Protection Circuit Protection
