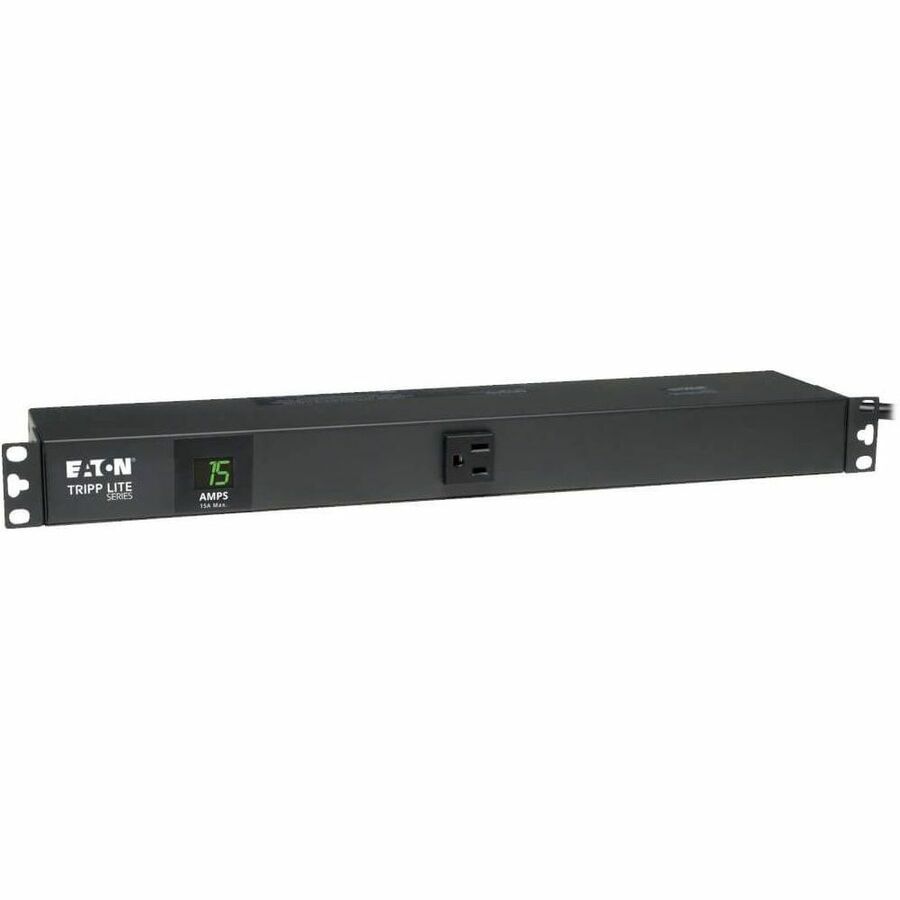

Tripp Lite by Eaton PDU 1.4kW Single-Phase Local Metered PDU 120V Outlets (13 5-15R) 5-15P 100-127V Input 15 ft. (4.57 m) Cord 1U Rack-Mount
13 x NEMA 5-15R - Zero U Vertical Rackmount, 1U Rack-mountable"
About This Product
Overview
Tripp Lite's PDUMH15 AC power distribution unit offers a digital current monitor and provides 15 amps of 120 volt capacity in a versatile multi-mount cabinet. Detachable mounting flanges are configurable for wallmount, under-counter, or 1U/0U rackmount installation. Uses only 1U of rack space when installed in any 19-inch rack, with the potentional for zero U mounting in the cable management area of most rack enclosures. Built-in digital ammeter display offers continuous visual power consumption data for the entire PDU. Attractive rackmount housing with 1 front and 12 rear facing outlets measures only 4.5 inches in depth. Unfiltered electrical pass-through without a power switch makes the PDUMH15 ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets, and more. Includes 12 rear facing NEMA 5-15R and one front facing outlet, 15-ft. AC power cord, 15 amp breaker, TVSS grounding lug and rugged all metal rackmount case design.
- Metered single phase 15A 120V PDU
- 1U horizontal rackmount, Digital current meter
- NEMA 5-15P input with 15 ft. / 4.5m line cord
- 13 NEMA 5-15R outlets (1 front / 12 rear)
Quick Specifications
- Product Model
- PDUMH15
- Product Type
- PDU
- Plug/Connector Type
- NEMA 5-15P
- Receptacle Type
- NEMA 5-15R
- Receptacle Detail
- 13 x NEMA 5-15R
- Protection Type
- Overload Protection
- Input Voltage
- 120 V AC
- Output Voltage
- 120 V AC
