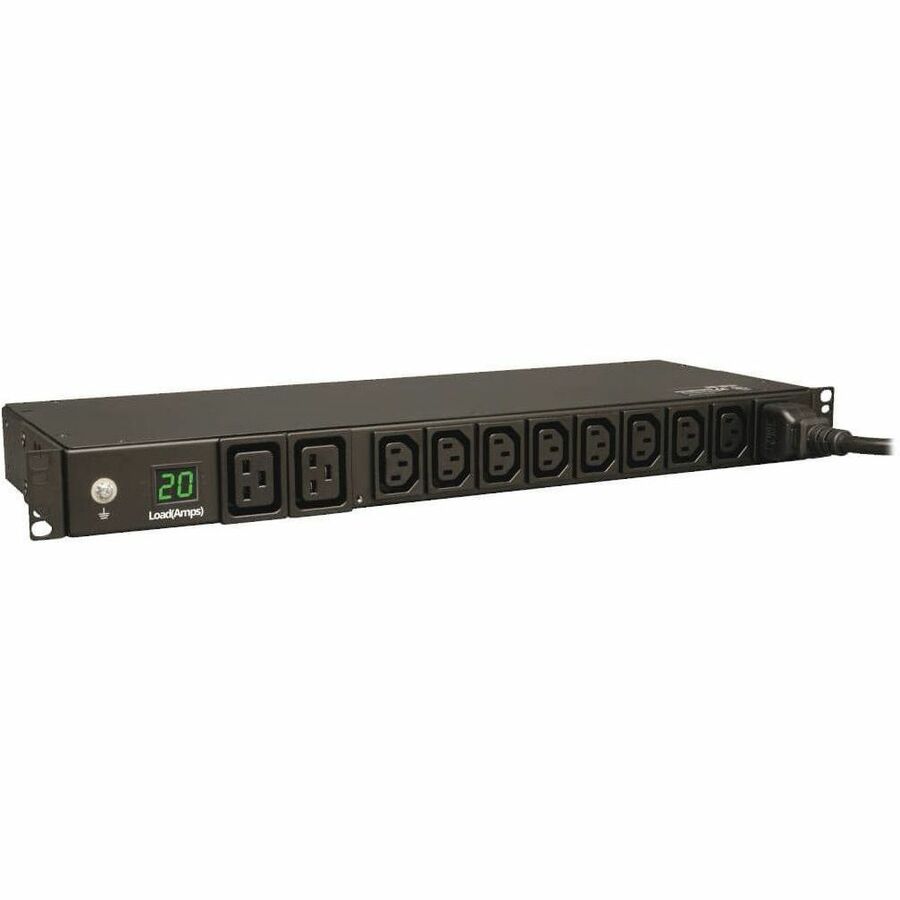

Tripp Lite by Eaton PDU 3.7kW Single-Phase Local Metered PDU 208/230V (8 C13 & 2 C19) C20 / L6-20P Adapter 12 ft. (3.66 m) Cord 1U Rack-Mount TAA
Manufacturer: Eaton Corporation
Mfr. Part: PDUMH20HV
1UHorizontal Rackmount
About This Product
Overview
PDUMH20HV Metered, 1U rack PDU supports 20A maximum capacity at 208/240 & 230V (agency de-rated to 16 amps). Includes C20 inlet and detachable input cable with both C20 and L6-20P input plug options. 10 total output receptacles (8 C13 and 2 C19). Visual current meter tracks the output current of all outlets combined. Supports 1U rackmount installation in 19 inch 2 or 4 post racks. Included cord retention bracket keeps vital network equipment plugged in and continuously powered.
- Metered single phase 16/20A 200-240V PDU
- 1U horizontal rackmount; Digital current meter
- C20 input with L6-20P plug adapter; 12 ft. / 3.7m line cord
- 10 total outlets (8 C13, 2 C19)
Quick Specifications
- Product Series
- Metered
- Product Model
- PDUMH20HV
- Product Type
- PDU
- Plug/Connector Type
- IEC 60320 C20 NEMA L6-20P
- Receptacle Type
- IEC 60320 C19 IEC 60320 C13
- Receptacle Detail
- 2 x IEC 60320 C19 8 x IEC 60320 C13
- Protection Type
- Overload Protection
- Input Voltage
- 230 V AC
