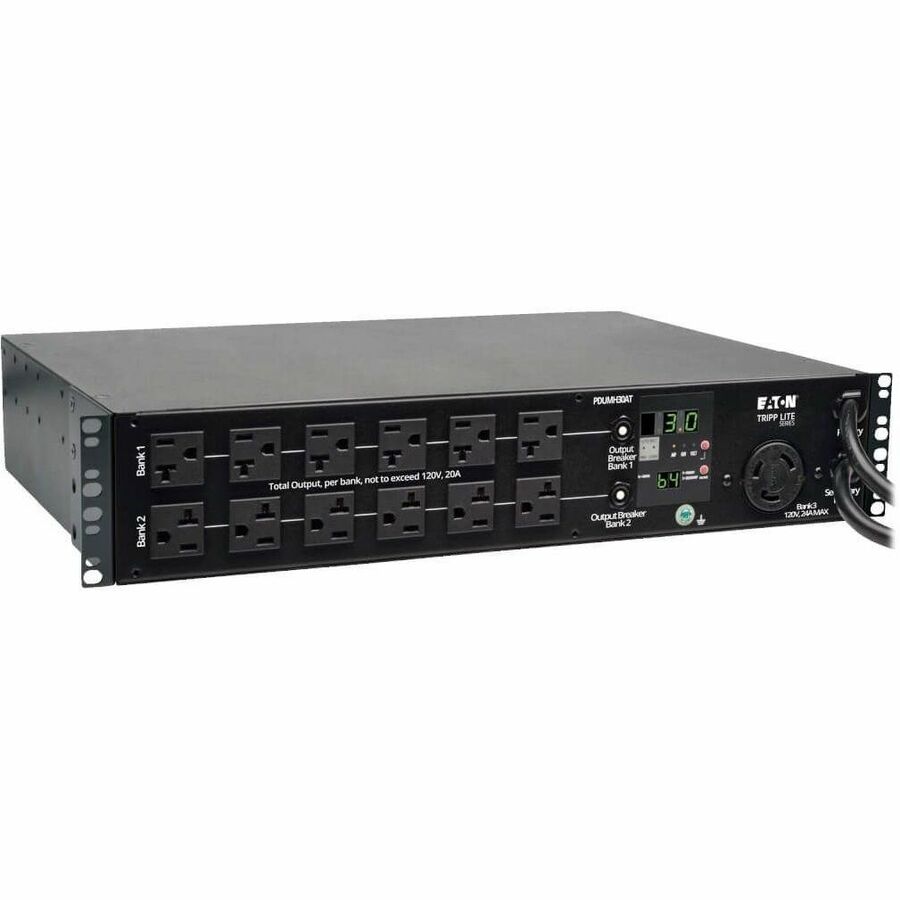

Tripp Lite by Eaton PDU 2.9kW Single-Phase Local Metered Automatic Transfer Switch PDU 2 120V L5-30P Inputs 24 5-15/20R & 1 L5-30R Outputs 2U TAA
Manufacturer: Eaton Corporation
Mfr. Part: PDUMH30AT
24 x NEMA 5-15/20R, 1 x NEMA L5-30R - 2UHorizontal Rackmount, Wall Mountable
About This Product
Overview
PDUMH30AT Metered ATS / Auto-Transfer Switch offers 120V 30A dual-input power distribution and visual current metering in a 2U horizontal rackmount installation format. Set of two NEMA L5-30P line cords enable separate primary and secondary input connections. Includes 25 built-in outputs (24 NEMA 5-15/20R and 1 L5-30R). Digital current metering with push-button display control tracks output power consumption in 4 segments: Bank 1 (12 upper 5-15/20R outlets), Bank 2 (12 lower 5-15/20R outlets), L5-30R (single outlet) and total PDU output. Supports 2U installation in 2 or 4 post racks, with additional support for wall-mount and under-counter placement.
- Single phase 30A 120V Auto Transfer Switch / ATS PDU; Highly reliable Solid State Switching
- Enables redundant A/B power option for single-corded network devices
- Separate primary & secondary inputs connect to any two compatible power sources
- 2U horizontal rackmount; 2 L5-30P inputs; 24 5-15/20R & 1 L5-30R outlets
- Digital meter reports voltage, kW load level and output amperage in 4 load segments
- TAA Compliant
Quick Specifications
- Product Series
- Metered
- Product Model
- PDUMH30AT
- Product Type
- PDU
- Plug/Connector Type
- NEMA L5-30P
- Plug/Connector Detail
- 2 x NEMA L5-30P
- Receptacle Type
- NEMA 5-15/20R NEMA L5-30R
- Receptacle Detail
- 24 x NEMA 5-15/20R 1 x NEMA L5-30R
- Input Voltage
- 120 V AC
