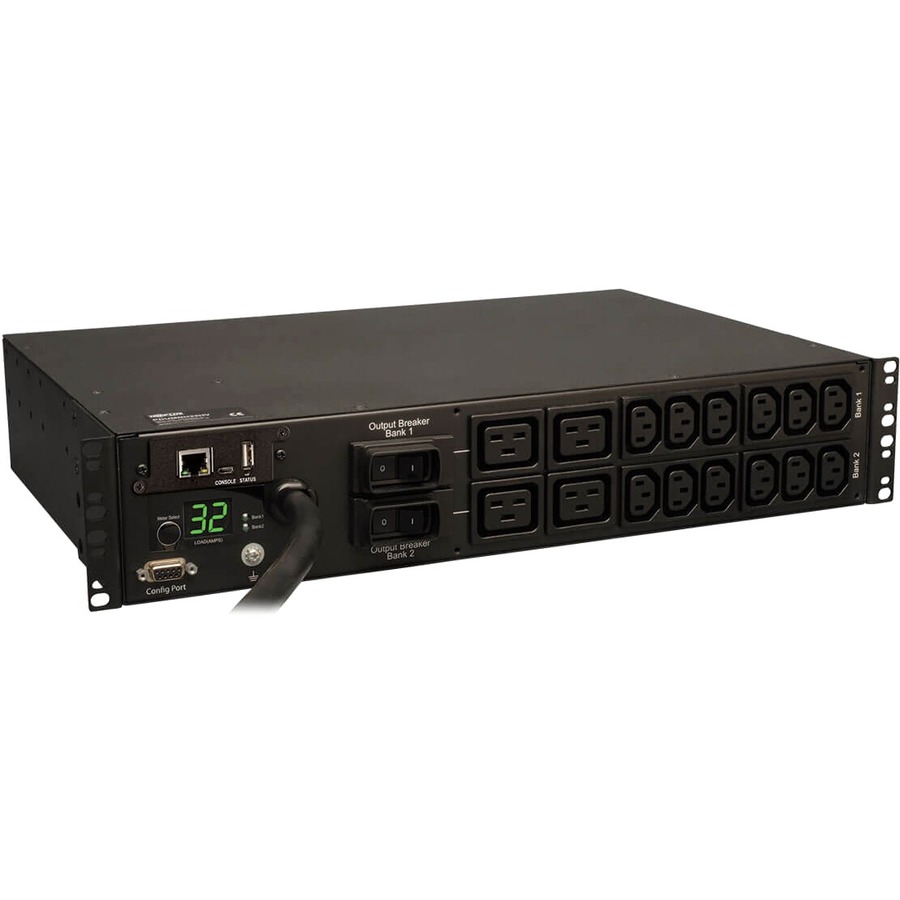

Eaton Tripp Lite Series 7.4kW Single-Phase Monitored PDU with LX Platform Interface, 230V Outlets (12-C13, 4-C19), IEC-309 32A Blue, 12 ft. (3.66 m) Cord, 2U Rack-Mount, TAA
Manufacturer: Eaton Corporation
Mfr. Part: PDUMNH32HV
4 x IEC 60320 C19, 12 x IEC 60320 C13 - 7.30 kVA - 2U - Horizontal Rackmount˘
About This Product
Overview
PDUMNH32HV Monitored 32A 2U horizontal rackmount PDU supports 7.4kW maximum capacity at 230V. Includes attached Blue 230V IEC-309 32A (2P+E) input plug and 16 230V outlets (12 C13, 4 C19) arranged in two separately breakered 8 outlet banks. Visual and remote current monitoring tracks the current for each 8 outlet bank separately, plus offers total power consumption for all 16 outlets combined. Supports 2U installation in 19 inch rackmount applications. Included cord retention brackets keep vital network equipment plugged in and continuously powered.
- Monitored 32A 230V PDU, 2U horizontal rackmount
- Reports voltage, frequency & load level via ethernet interface
- Visual current meter, Reversible housing
- Blue 230V IEC-309 32A (2P+E) input plug
- 16 outlets (12 C13, 4 C19) with included cord retention brackets
- Temperature, humidity and contact-closure monitoring options
Quick Specifications
- Product Series
- Metered
- Product Model
- PDUMNH32HV
- Product Type
- PDU
- Receptacle Type
- IEC 60320 C19 IEC 60320 C13
- Receptacle Detail
- 4 x IEC 60320 C19 12 x IEC 60320 C13
- Protection Type
- Overload Protection
- Input Voltage
- 230 V AC
- Output Voltage
- 230 V AC
