Tripp Lite by Eaton PDU 3.7kW Single-Phase Switched PDU - LX Interface 208/230V Outlets (20 C13 & 4 C19) C20/L6-20P 0U TAA
Manufacturer: Eaton Corporation
Mfr. Part: PDUMV20HVNETLX
Switched - NEMA L6-20P, IEC 60320 C20 - 4 x IEC 60320 C19, 20 x IEC 60320 C13 - 230 V AC - 0U - Vertical - Rack Mount - TAA Compliant
About This Product
Overview

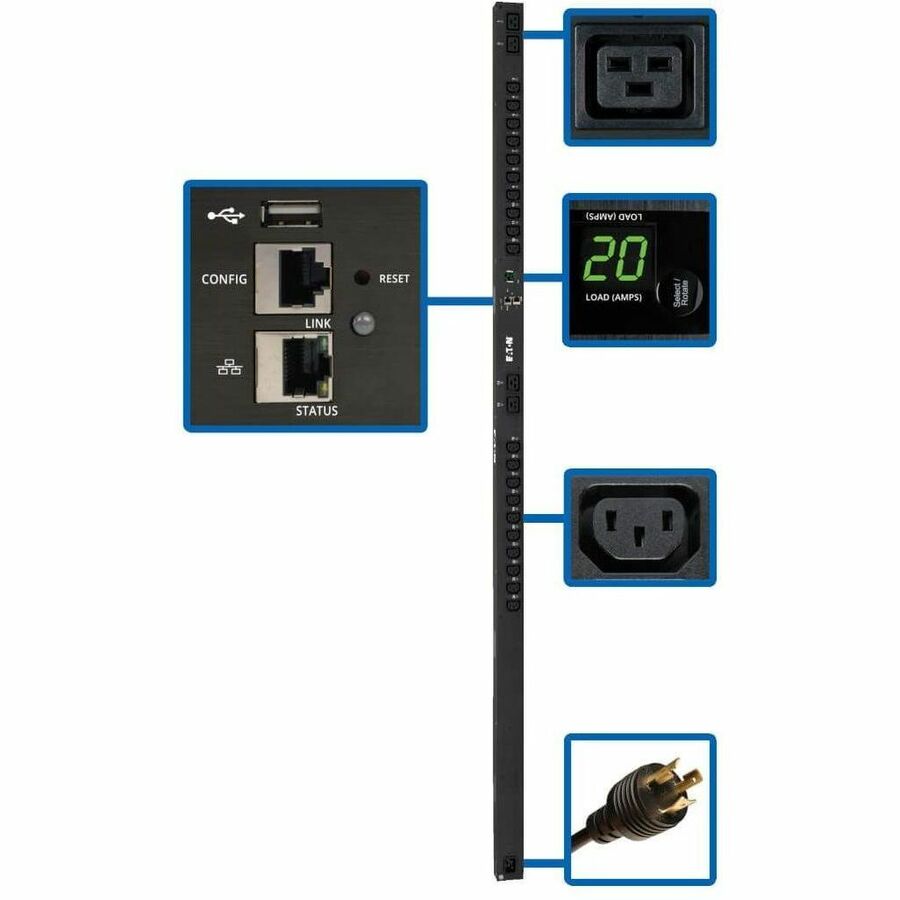

The PDUMV20HVNETLX 3.2-3.8kW Single-Phase Switched PDU provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. Recommended for any IT or industrial application, it features 24 switched outlets (20 C13 and 4 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A 10-foot cord with NEMA L6-20P plug connects the PDU's C20 inlet to a compatible AC power source, generator or protected UPS.
The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
A digital ammeter allows you to monitor each bank's load in real time to ensure it remains well below maximum capacity with no danger of overload. The vertical PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.
The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
A digital ammeter allows you to monitor each bank's load in real time to ensure it remains well below maximum capacity with no danger of overload. The vertical PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.
- 3.2-3.8kW 200/208/230/240V switched PDU
- 24 individually controllable outlets-20 C13, 4 C19
- Built-in LX Platform interface for 24/7 remote access
- Digital ammeter for on-site load monitoring in real time
- C20 inlet with 10ft NEMA L6-20P AC power cord
Quick Specifications
- Product Model
- PDUMV20HVNETLX
- Product Type
- PDU
- PDU Type
- Switched
- Phase
- Single Phase
- Plug/Connector Type
- NEMA L6-20P IEC 60320 C20
- Receptacle Type
- IEC 60320 C19 IEC 60320 C13
- Receptacle Detail
- 4 x IEC 60320 C19 20 x IEC 60320 C13
- Input Voltage
- 230 V AC
