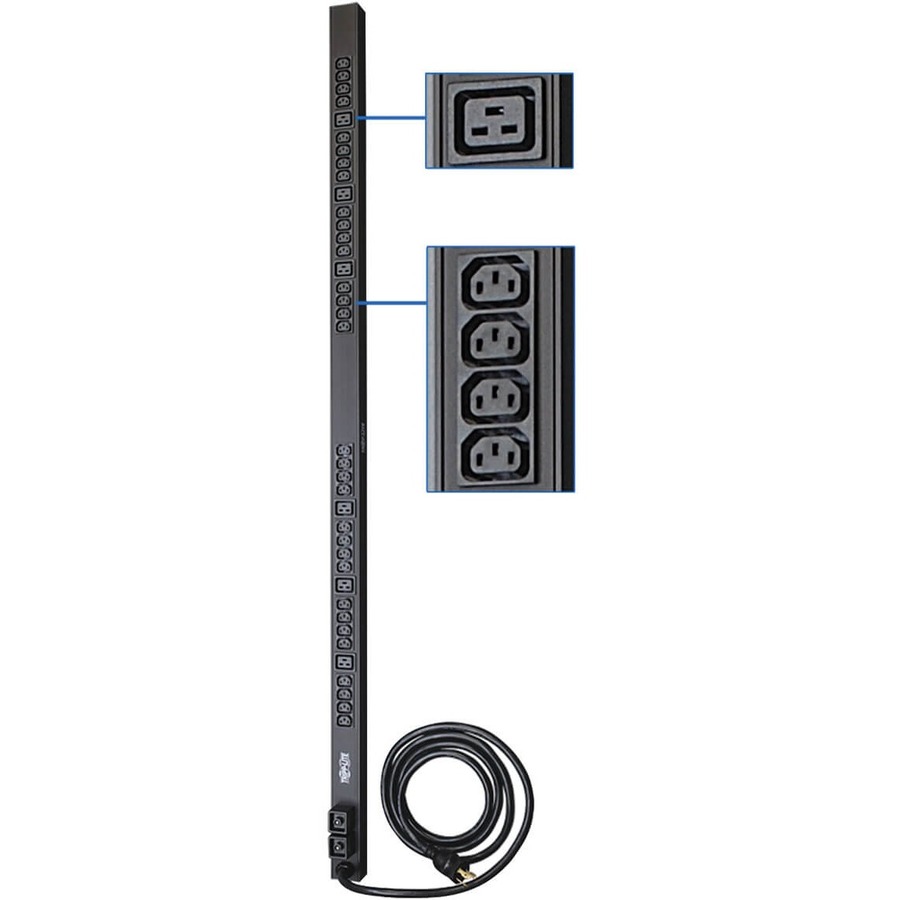

Tripp Lite by Eaton PDU 5.5kW Single-Phase 208/230V Basic PDU 38 Outlets (32 C13 and 6 C19) NEMA L6-30P Input 10 ft. (3.05 m) Cord 0U Vertical
6 x IEC 320 EN 60320 C19, 32 x IEC 320 EN 60320 C13 - Zero U Vertical Rackmount, Wall-mountable"
About This Product
Overview
Tripp Lite Basic Power Distribution Units give IT Managers the ability to power multiple servers and vital networking hardware from a single input power source. Switch-free unfiltered electrical pass-through reliably distributes UPS or generator power to critical equipment in rack enclosures, network closets and more. Tooless mounting enables simple installation in button-mount compatible racks. Included mounting brackets support vertical installation in standard 2 and 4 post racks or other surfaces, such as under-counter or wallmount configurations. Plug retention brackets keep vital equipment plugged in and continuously powered.PDUV30HV 63.75 in. vertical 0U rack PDU supports 30A maximum capacity at 208/240V (agency derated to 24A). Includes 10 ft. attached line cord with L6-30P input plug. 32 C13 and 6 C19 outlets support up to 38 directly connected pieces of networking equipment. Outlets are arranged in two separately breakered 15A load banks.
- Basic 0U 63.75 in. vertical rack PDU
- 208/240V 30A maximum capacity
- 10 ft. input cable with locking L6-30P plug
- 38 total output receptacles (6 C19, 32 C13)
- Toolless button-mount installation
- Cord retention brackets keep vital equipment plugs connected
Quick Specifications
- Product Model
- PDUV30HV
- Product Type
- PDU
- PDU Type
- Basic
- Plug/Connector Type
- NEMA L6-30P
- Receptacle Type
- IEC 60320 C19 IEC 60320 C13
- Receptacle Detail
- 6 x IEC 60320 C19 32 x IEC 60320 C13
- Protection Type
- Overload Protection Short Circuit Protection
- Input Voltage
- 230 V AC
