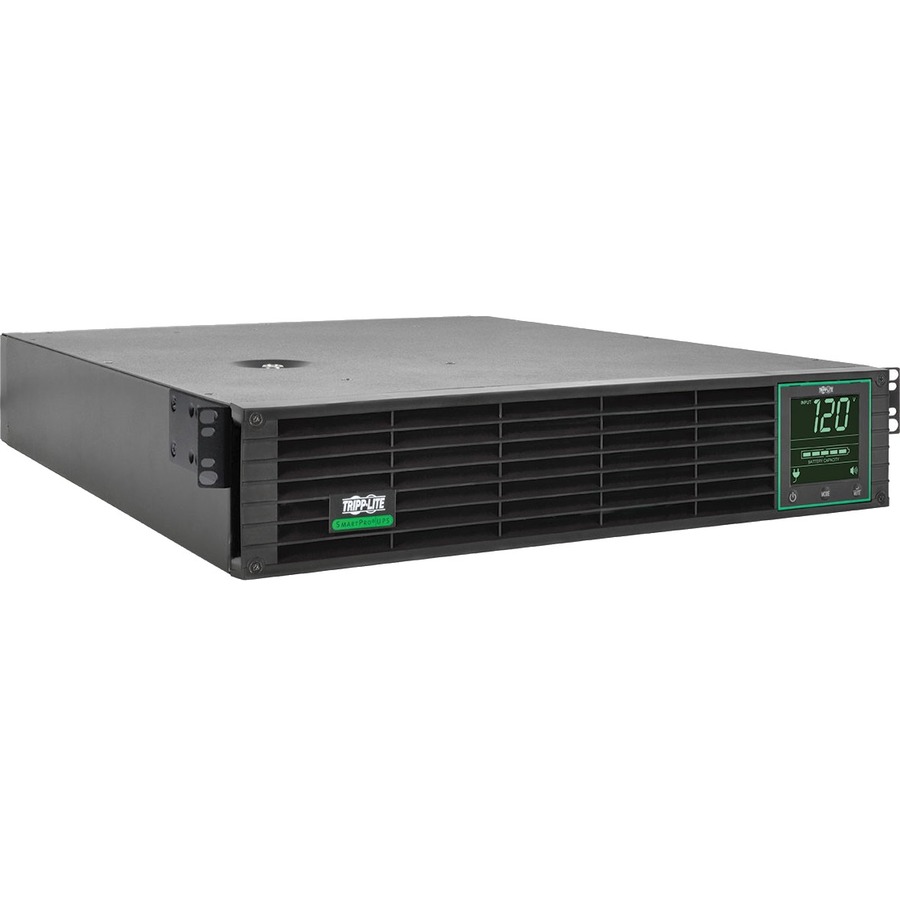

Tripp Lite by Eaton UPS SmartPro 120V 2.2kVA 1.92kW Line-Interactive Sine Wave UPS Lithium Iron Phosphate (LiFePO4) Batteries 2U LCD USB DB9
Manufacturer: Eaton Corporation
Mfr. Part: SMART2200RM2UL
2200 VA/1920 W - 110 V AC, 115 V AC, 120 V AC - 5.10 Minute - 2U Rack-mountable - 5.10 Minute - 4 x NEMA 5-15/20R, 4 x NEMA 5-20 - Over Voltage, Under Voltage
About This Product
Overview
Protects Mission-Critical Rack-Mounted Equipment
- Provides fully regulated sine wave AC output for servers, network storage devices, telecom hardware and other applications where long battery lifespan is critical
- Audible alarm signals loss of utility power, overload and low battery
- 4 NEMA 5-15R & 4 NEMA 5-15/20R outlets
- 10-ft. (3.05 m) power cord with 120V NEMA 5-20P input
- 570-joule surge suppression rating
- 0.9 power factor rating
- 97% line-mode efficiency rating saves money in energy costs
- More than 2x the service life
- Up to 3x more charge/discharge cycles
- Recharges to 100% capacity in less than 2 hr.
- Weighs 60% less, reducing overall UPS weight
- Supports half load up to 11.7 min. and full load up to 5.1 min.
- Can control 2 outlets remotely to reboot equipment or shed nonessential loads
- Maintains 120V nominal output over input range of 83V-145V without using battery power
- Removes electromagnetic and radio frequency interference that can disrupt or damage equipment's performance
- Front-panel LCD with detailed UPS and site power status and operating data
- Rotates for easy viewing in rack-mount or tower configurations
- Compatible with Tripp Lite UPS management cards WEBCARDLX, SNMPWEBCARD and RELAYIOCARD
- USB and DB9 ports enable data-saving unattended shutdown when used with Tripp Lite PowerAlert software (available via free download at www.tripplite.com/poweralert
- EPO port supports emergency shutdown in large facilities
- Hardware included for 4-post mounting in 2U of EIA-standard 19 in. rack
- Mounts on wall or 2-post rack with optional 2POSTRMKITWM accessory
- Mounts in upright tower position with optional 2-9USTAND accessory
- $250,000 Ultimate Lifetime Insurance covers any connected components
- LiFePO4 battery offers longer life, more cycles and faster recharge
- 97% line-mode efficiency rating saves money in energy costs
- 8 NEMA 5-15R outlets-2 switchable via network interface
- Compatible with Tripp Lite network management cards
- 11.7 min. runtime at half load; 5.1 min. at full load
Quick Specifications
- Product Line
- SmartPro
- Product Model
- SMART2200RM2UL
- Product Type
- Line-interactive UPS
- Plug/Connector Type
- NEMA 5-20P
- Receptacle Type
- NEMA 5-15/20R NEMA 5-20
- Receptacle Detail
- 4 x NEMA 5-15/20R 4 x NEMA 5-20
- Transfer Time
- 5 ms
- EMI/RFI Noise Filter
- Yes
