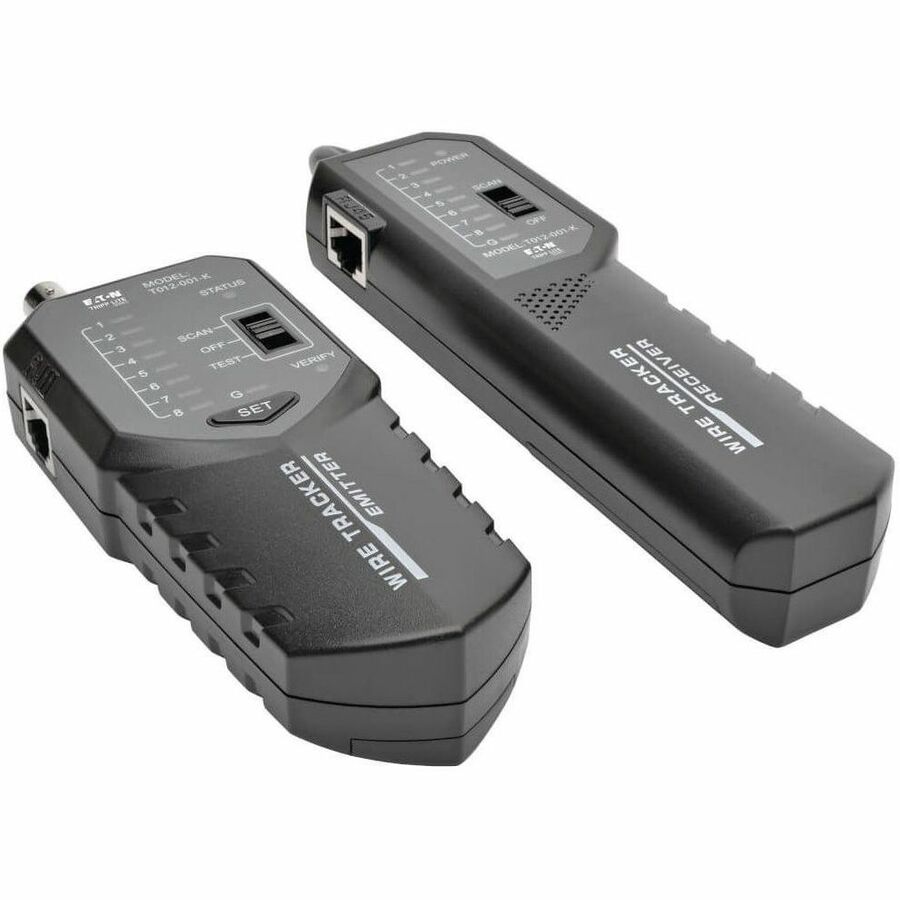

Eaton Tripp Lite Series Multi-Function Cable Tester with Wire Tracker and Tone Generator
Manufacturer: Eaton Corporation
Mfr. Part: T012-001-K
Cable Signal Testing, Cable Tracing, LAN Cable Testing, Optical Power Testing, Short Circuit Testing, Open Circuit Testing, Wiremap, Coaxial Cable Testing, Network Testing - Network (RJ-45) - Twisted Pair, Optical Fiber, Coaxial - 2Number of Batteries Supported - 9V - Battery Included
About This Product
Overview
The T012-001-K Multi-Function Cable Tester is an essential tool for cable installers or anyone working in telecom or LAN environments. It allows you to track cable, find a short or breakage in non-powered wires, and perform wire mapping on RJ45 cables, detecting shorts and open wires. Powered by included 9-volt batteries in the main tester and remote probe unit, the T012-001-K can find an RJ11, RJ45 or BNC cable nestled within a group of cables. The probe unit's LED flashlight is handy for working in dark areas. Included headphones help you work in noisy environments. An adjustable volume button lets you fine-tune the tone generator.
- Find an RJ11, RJ45 or BNC cable among group of cables
- Find a short or breakage in non-powered wires
- Perform wire mapping on RJ45 cables
- LED flashlight on remote probe unit
- Included headphones for use in noisy areas
Quick Specifications
- Product Model
- T012-001-K
- Product Type
- Testing Device
- Device Function
- Cable Signal Testing Cable Tracing LAN Cable Testing Optical Power Testing Short Circuit Testing Open Circuit Testing Wiremap Coaxial Cable Testing Network Testing
- Network (RJ-45)
- Yes
- Media Type Supported
- Twisted Pair Optical Fiber Coaxial
- Number of Batteries Supported
- 2
- Battery Size Supported
- 9V
- Battery Included
- Yes
