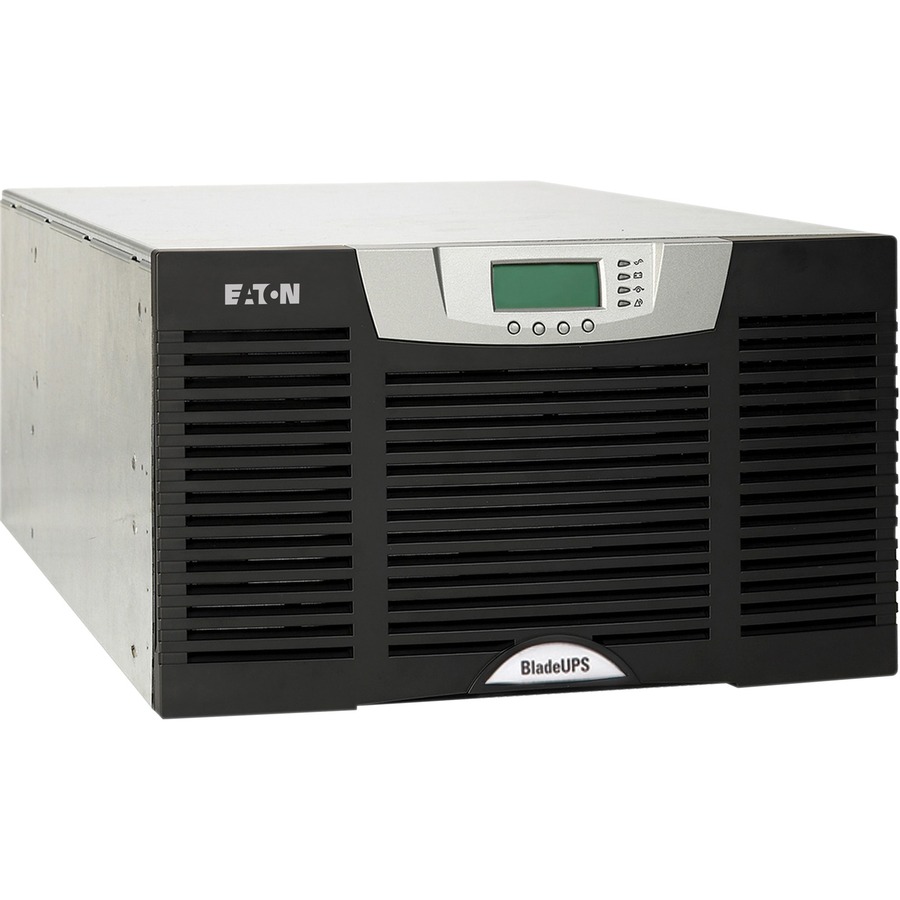

Eaton BladeUPS 12kW Rack-mountable UPS
Manufacturer: Eaton Corporation
Mfr. Part: ZC121TB08100000
6U Rack-mountable - 4.70 Minute Stand-by - 400 V AC Input
About This Product
Overview
Designed for the data centre - to ensure maximum uptime and maximum efficiency
Simply Scalable.
Simply Scalable.
- Eaton BladeUPS provides scalable double-conversion backup power
- BladeUPS is designed for the data centre -to work in harmony with your servers and IT equipment to ensure maximum uptime and maximum efficiency
- Scalable architecture enables you to design, scale and grow your data centre as your demand grows.
- BladeUPS provides from 12kW to 60kW N+1 mounted in a single IT rack enclosure, with multiple power distribution options
- BladeUPS delivers an industry-leading 98% efficiency across the operating range, resulting in cooler operating conditions and less heat dissipation
- BladeUPS is extremely flexible and supports multiple configurations including power protection in each rack, centralised protection, zone protection or hybrid as required
- If your needs change or need to move your IT equipment, simply redeploy and reuse BladeUPS as single of parallel units elsewhere
- Multiple external batteries can be added to increase runtime
- BladeUPS has multiple power distribution options including the Rack Power Module (RPM), ePDUs or hardwired. The 3U RPM delivers single-phase power and can be deployed in the same rack as the UPS and IT equipment.
- Optimize your operational expenditure - Latest high efficiency technologies provide 98% efficiency, with 65% less heat dissipation to minimise your operational costs and reduce your carbon footprint
- A 60kW N+1 solution could save over €20,000 in 5 years in energy costs alone
- The small footprint of BladeUPS allows extra space for IT equipment in the rack and data centre.
- Due to the low heat dissipation, air conditioning requirements are reduced by up to a third and BladeUPS can be located close to IT equipment.
- Utilises Eaton's Advanced Battery Management system to prolong battery life by up to 50%
- Choose a pre configured solution, or configure yourself
Quick Specifications
- Product Line
- BladeUPS
- Product Type
- Double Conversion Online UPS
- Plug/Connector Type
- Hard Wire 5-wire
- Receptacle Type
- Hard Wire 5-wire
- Phase
- Three Phase
- Application/Usage
- Data Center Server Network PBX System VoIP Security Storage Device IPTV IT Equipment
- Input Voltage
- 400 V AC
- Input Voltage Range
- 311 V AC - 519 V AC
