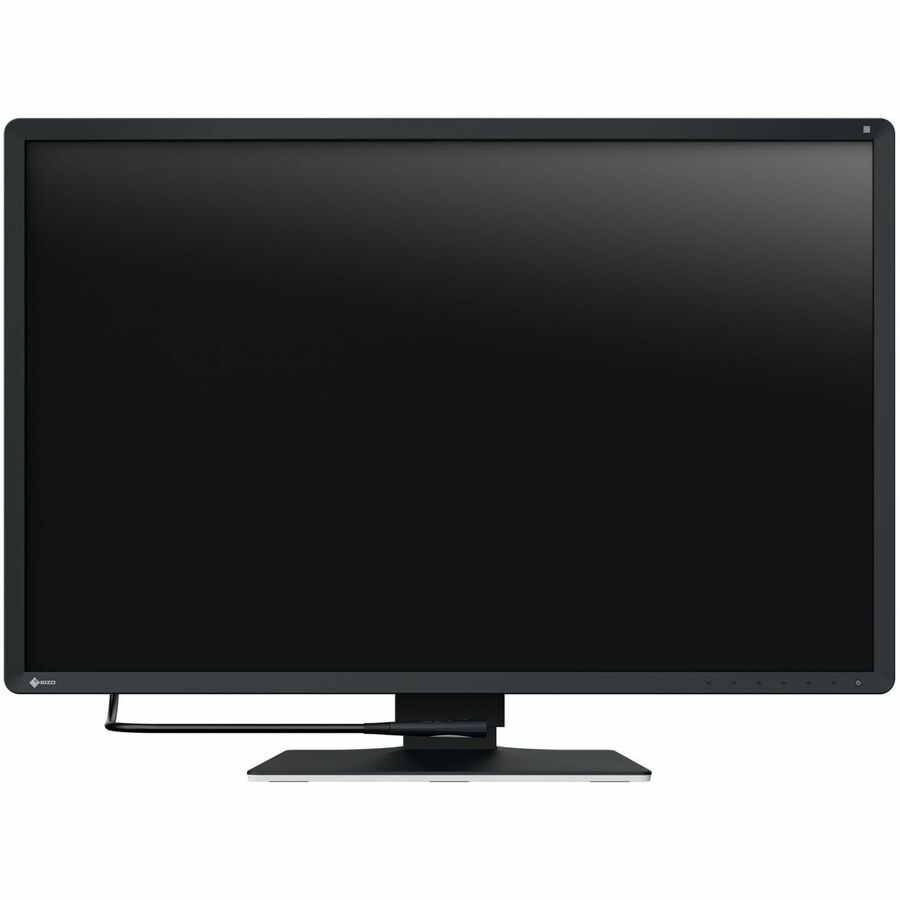

EIZO RadiForce RX670-BK 30" Class LED Monitor - 16:10 - Black

High Fidelity Images for Peace of Mind

6 megapixel medical monitor with DICOM® Part 14 calibration ideal for viewing a variety of medical images such as chest X-ray, CT, or endoscopy accurately.

Multi-Modality Capability with 6MP Resolution

The spacious 30-inch screen displays 6 megapixels (3280 x 2048 pixels) of information. Multi-modality capability enables the simultaneous display of examination images, such as chest X-ray, CT, endoscopy, or ultrasound, offering a high degree of freedom in the layout and facilitating efficient image reading.

Hybrid Display of Monochrome and Color

Hybrid Gamma PXLThe Hybrid Gamma PXL function automatically distinguishes between monochrome and color images pixel by pixel, creating a hybrid display where each pixel has optimum grayscale. As a result, monochrome images such as CT, MRI and X-ray are displayed in the ideal grayscale that corresponds to DICOM Part 14, while color images such as 3D rendering, nuclear medicine, ultrasound and endoscopy are faithfully reproduced corresponding to Gamma 2.2. This helps improve efficiency of viewing both monochrome and color images by displaying them together on the one screen.

Achieve Clarity True to the Source Data

A medical monitor needs to be capable of high brightness in order to meet performance standards. However, in order to achieve high brightness in an LCD panel, the pixel aperture ratio has to be increased. This causes a typically unavoidable decline in sharpness. With EIZO's unique Sharpness Recovery technology, the decrease in sharpness (MTF) is restored. This allows you to display an image safely on the monitor that is true to the original source data, even at high brightness levels.

MTF measures numerically how faithfully the panel transfers detail from the original image data for viewing. When Sharpness Recovery is turned on, in the case of a 2 pixel line pair (spatial frequency of 1.270 cycles/mm) the MTF increases by over 50%.

Make the Precise Diagnosis

EIZO carefully measures and sets each grayscale tone to create a monitor compliant with DICOM Part 14. This ensures the most consistent shading possible, allowing for the most accurate diagnosis.

Streamlined Connection with USB Type-C

The monitor features a USB Type-C® connectivity that allows you display video, transmit USB signals, supply power to connected mobile workstations, and even transmit a network signal. Furthermore, multi-screen setup can easily be established with simple daisy chain connection. This convenient multi-purpose connectivity makes it faster and easier to connect your mobile workstation when working remotely or at home.

Mobile Workstation Power Delivery

The 94 watt power delivery via USB Type-C reliably charges mobile workstations. This eliminates the need for a mobile workstation's bulky power supply unit, freeing up space in your bag and on the desk.

Stable Wired Network Connection

The monitor has LAN port directly built in for a stable wired connection. Connecting mobile workstation via USB Type-C allows access to the network through the monitor, making it useful when security policies require a wired connection.

Directly Connect Peripherals

While many modern mobile workstations are designed to be thinner and more portable, they often have limited connectivity options for peripherals. Connecting a mobile workstation to the monitor via USB Type-C gives access to a hub with three USB Type-A and one USB Type-C ports for easily connecting an external keyboard, mouse, or headset.
