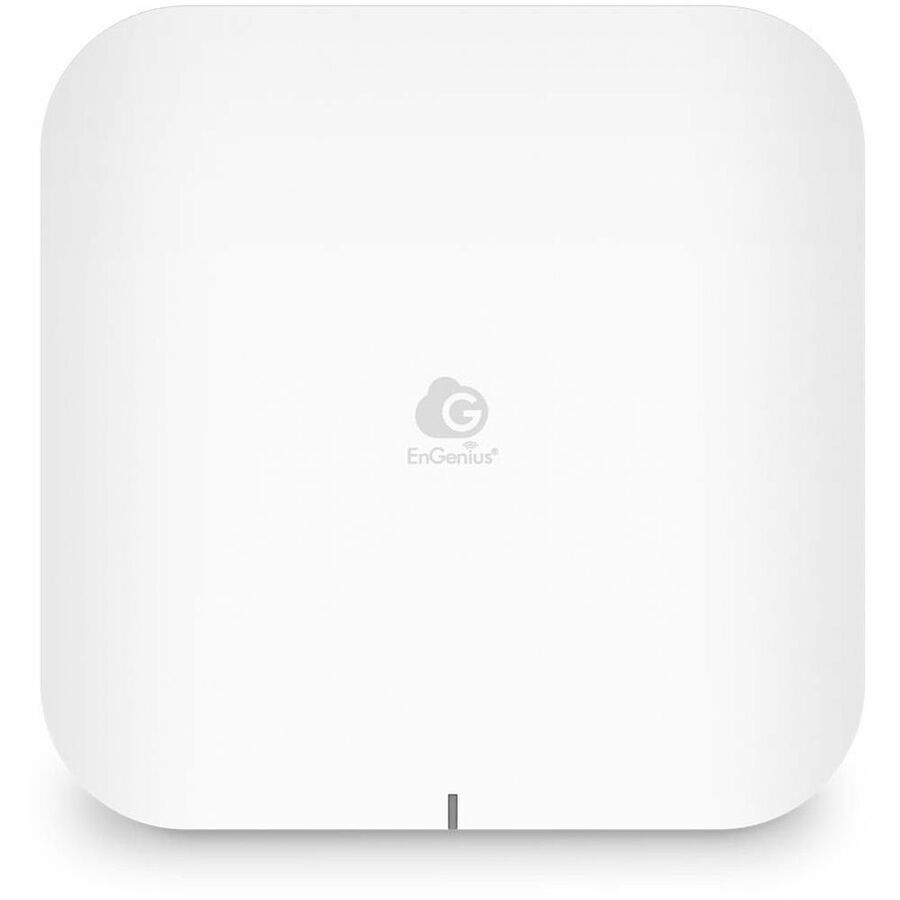

EnGenius ECW536 Tri Band Wi-Fi 7 IEEE 802.11 a/b/g/n/ac/ax/be 18.70 Gbit/s Wireless Access Point - Indoor

Manufacturer: EnGenius Technologies, Inc
Mfr. Part: NFR-ECW536

2.40 GHz, 5 GHz, 6 GHz - 12 x Internal Antenna(s) - Internal - MIMO Technology - Multi User MIMO - 2 x Network (RJ-45) - 10 Gigabit Ethernet - 35 W - Ceiling Mountable, Wall Mountable - 1

EnGenius ECW536 Tri Band Wi-Fi 7 IEEE 802.11 a/b/g/n/ac/ax/be 18.70 Gbit/s Wireless Access Point - Indoor

About This Product

Overview

The EnGenius Cloud Managed ECW536 is a sleekly designed Wi-Fi 7 tri-band 4x4x4 access point that supports up to 18.7 gigabits speeds using 2.4 GHz, 5 GHz, and 6 GHz band. The ECW536 using Wi-Fi 7 standards supports 320 MHz channels, 4-MU-MIMO, 4096-QAM, Multi-Link Operation and Multi-RU puncturing to increase reliability and performance by using multiple bands, avoiding interference, and reducing latency. The ECW536 is supported with two 10 GbE ports, 1st port supporting PoE++ for easy install and a 2nd port for gigabit speed to another device.

  • Wi-Fi 7 Tri-band, 2.4GHz, 5 GHz, and 6 GHz supports 18.7 Gbps aggregate speeds.
  • Ultra-wide 320 MHz channels in 6 GHz to deliver extreme throughput gains.
  • 4x4x4 integrated omni-directional antenna design for greater coverage area.
  • 4 MU-MIMO spatial streams to ensure premium performance in high density environments.
  • 4096-QAM advanced modulation packs more data for throughput and capacity.
  • Multi-Link Operation (MLO) increases throughput and reliability utilizing multiple bands.
  • Multi-RU puncturing avoids interference, increases throughput, and reduces latency.
  • Sleek ceiling-mount with a modern multi-color LED for low-profile design.
  • Simple click-n-twist mounting and Kingston lock for easy and secure installation.
  • 10 GbE PoE++ port to maximize multi-gigabit connection speeds and AP placement.
  • Secondary 10 GbE port to conveniently connect to another high-performance device.
  • Cutting-edge cloud management for centralized management and mass scalability.
  • Advanced enterprise security with radius and isolated guest access for more secure networks.
  • Access point diagnostic tools for real-time remote monitoring and troubleshooting.

Quick Specifications

Product Model
ECW536
Packaged Quantity
1
Product Type
Wireless Access Point
Wireless LAN Standard
IEEE 802.11 a/b/g/n/ac/ax/be
Network Band
Tri Band
Frequency Band
2.40 GHz 5 GHz 6 GHz
Total Number of Antennas
12
Number of Internal Antennas
12
