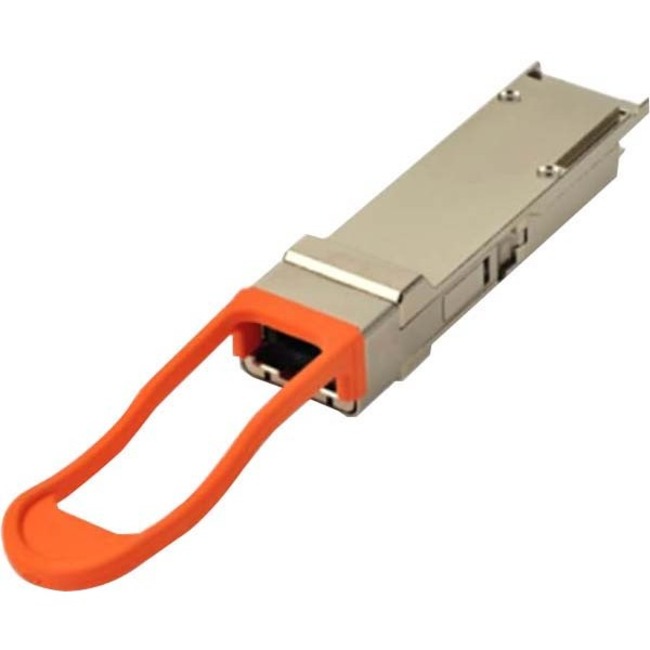

Finisar 40GBase-SR4/10GBase-SR 300m Gen4 QSFP+ Optical Transceiver
Manufacturer: Finisar Corporation
Mfr. Part: FTL410QD4C
For Optical Network, Data Networking - 1 x MTP-12 Duplex 40GBase-SR4 Network - Optical Fiber - Multi-mode - 40 Gigabit Ethernet - 40GBase-SR4 - Hot-pluggable
About This Product
Overview
FTL410QD4C QSFP+ optical transceiver modules are designed for use in 40 Gigabit per second links over parallel multimode fiber, including breakout to four 10 Gigabit per second links. They are compliant with the QSFP+ MSA and IEEE 802.3ba 40GBASE-SR4 and compatible with IEEE 802.3ba 10GBASE-SR. Digital diagnostics functions are available via an I2C interface, including Tx and Rx powering monitoring. The optical transceiver is RoHS compliant as described in Application Note AN-2038.
- Four-channel full-duplex transceiver module
- Hot-pluggable QSFP+ form factor
- Maximum link length of 300m on OM3 Multimode Fiber (MMF) and 400m on OM4 MMF
- Multirate capability: 1.06Gb/s to 10.5Gb/s per channel
- Unretimed XLPPI electrical interface
- Maximum power dissipation < 1W
- Reliable VCSEL array technology
- Built-in digital diagnostic functions, including Tx and Rx power monitoring
- Commercial operating case temperature range 0°C to 70°C
- Single 1×12 MPO receptacle
Quick Specifications
- Product Type
- QSFP+
- Application/Usage
- Optical Network Data Networking
- Total Number of Ports
- 1
- Connector Type
- MTP-12
- Interfaces/Ports Details
- 1 x MTP-12 Duplex 40GBase-SR4 Network
- Media Type Supported
- Optical Fiber
- Fiber Mode Supported
- Multi-mode
- Ethernet Technology
- 40 Gigabit Ethernet
