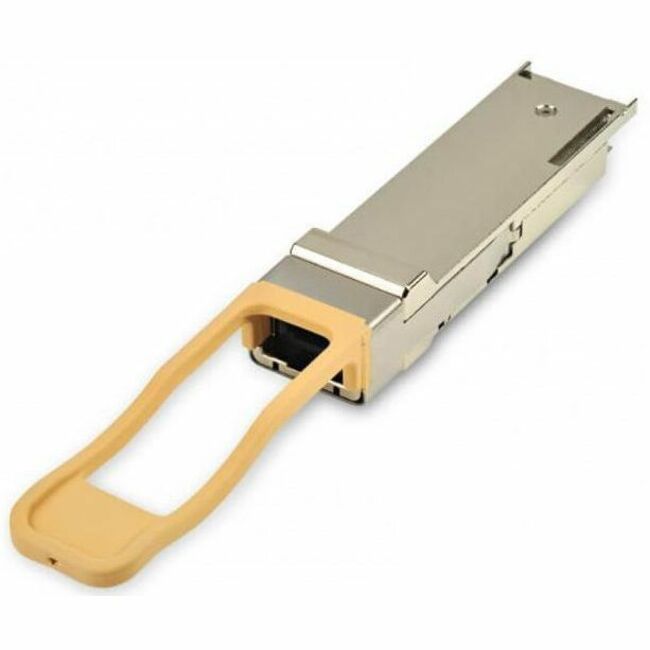

Finisar QSFP+ Module
Manufacturer: Finisar Corporation
Mfr. Part: FTL410QE4N
For Data Networking, Optical Network - 1 x MPO-12 40GBase-SR4 Network - Optical Fiber - Multi-mode - 40 Gigabit Ethernet - 40GBase-SR40.15 km Maximum Distance - Hot-pluggable
About This Product
Overview
- Four-channel full-duplex transceiver module
- Hot Pluggable QSFP+ form factor
- Maximum link length of 100m on OM3 Multimode Fiber (MMF) and 150m on OM4 MMF
- Multirate capability: 1.06Gb/s to 10.5Gb/s per channel
- Unretimed XLPPI electrical interface
- Max power dissipation <1W
- Reliable VCSEL array technology
- Built-in digital diagnostic functions, including Tx and Rx power monitoring
- Extended operating case temperature range: -5ºC to +85ºC
- Single 1x12 MPO receptacle
- RoHS-6 Compliant
Quick Specifications
- Product Type
- QSFP+
- Application/Usage
- Data Networking Optical Network
- Total Number of Ports
- 1
- Connector Type
- MPO-12
- Interfaces/Ports Details
- 1 x MPO-12 40GBase-SR4 Network
- Media Type Supported
- Optical Fiber
- Fiber Mode Supported
- Multi-mode
- Ethernet Technology
- 40 Gigabit Ethernet
