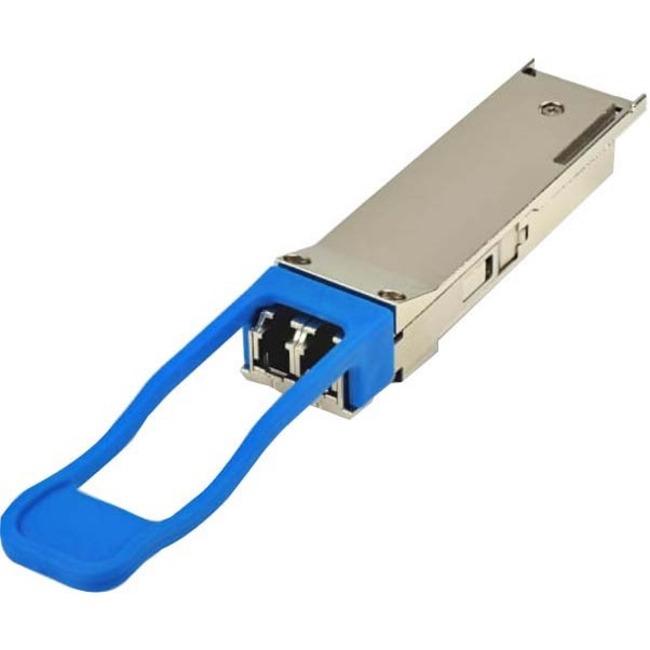

Finisar 40GBase-LR4 10km Gen2 QSFP+ Optical Transceiver
Manufacturer: Finisar Corporation
Mfr. Part: FTL4C1QE2C
For Optical Network, Data Networking - 1 x LC Duplex 40GBase-LR4 Network - Optical Fiber - Single-mode - 40 Gigabit Ethernet - 40GBase-LR4 - Hot-pluggable
About This Product
Overview
FTL4C1QE2C QSFP+ transceiver modules are designed for use in 40 Gigabit Ethernet links over single mode fiber. They are compliant with the QSFP+ MSA and IEEE 802.3ba 40GBASE-LR4. Digital diagnostics functions are available via an I2C interface, as specified by the QSFP+ MSA. The optical transceiver is RoHS compliant as described in Application Note AN-2038.
- Hot-pluggable QSFP+ form factor
- Supports 41.2 Gb/s aggregate bit rates
- Power dissipation < 3.5W
- RoHS compliant
- Commercial temperature range 0°C to 70°C
- Single 3.3V power supply
- Maximum link length of 10km on Single Mode Fiber (SMF)
- Uncooled 4x10Gb/s CWDM transmitter
- XLPPI electrical interface
- Duplex LC receptacles
Quick Specifications
- Product Type
- QSFP+
- Application/Usage
- Optical Network Data Networking
- Total Number of Ports
- 1
- Connector Type
- LC
- Interfaces/Ports Details
- 1 x LC Duplex 40GBase-LR4 Network
- Media Type Supported
- Optical Fiber
- Fiber Mode Supported
- Single-mode
- Ethernet Technology
- 40 Gigabit Ethernet
