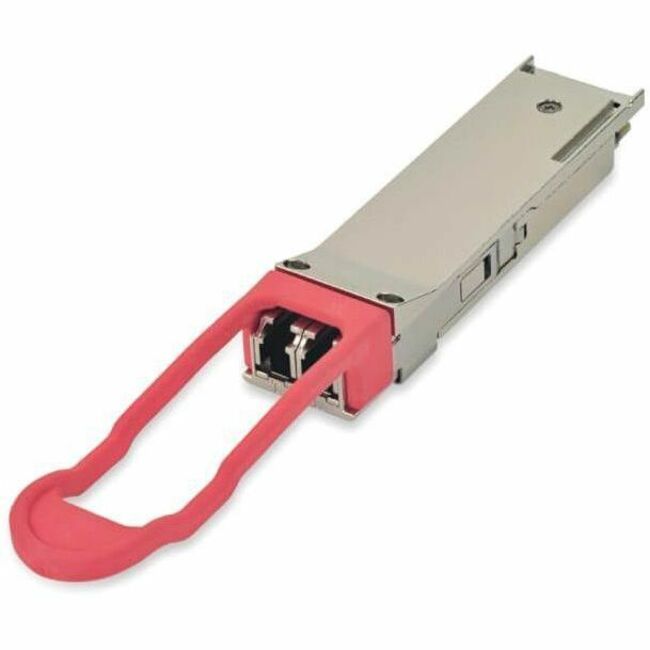

Finisar 40GBase-ER4 40km QSFP+ Optical Transceiver
Manufacturer: Finisar Corporation
Mfr. Part: FTL4E1QE1C
For Data Networking, Optical Network - 1 x LC Duplex 40GBase-ER4 Network - Optical Fiber - Single-mode - 40 Gigabit Ethernet - 40GBase-ER4 - 41.20 Gbit/s - 40 km Maximum Distance - Hot-pluggable - 1
About This Product
Overview
FTL4E1QE1C QSFP+ transceiver modules are designed for use in 40 Gigabit Ethernet links over single mode fiber. They are compliant with the QSFP+ MSA and IEEE 802.3bm 40GBASE-ER4. Digital diagnostics functions are available via an I2C interface, as specified by the QSFP+ MSA. The optical transceiver is RoHS compliant as described in Application Note AN-2038.
- Hot-pluggable QSFP+ form factor
- Supports 41.3 Gb/s aggregate bit rates
- Power dissipation < 3.5W
- 18.5 dB link insertion loss budget
- RoHS compliant
- Commercial case temperature range 0°C to 70°C
- Single 3.3V power supply
- Maximum link length of 40km on Single Mode Fiber (SMF)
- Uncooled 4x10Gb/s CWDM transmitter
- XLPPI electrical interface
- Duplex LC receptacles
- Built-in digital diagnostic functions, including Tx/Rx power monitoring
Quick Specifications
- Product Type
- QSFP+
- Packaged Quantity
- 1
- Package Type
- Bulk
- Application/Usage
- Data Networking Optical Network
- Total Number of Ports
- 1
- Connector Type
- LC
- Interfaces/Ports Details
- 1 x LC Duplex 40GBase-ER4 Network
- Media Type Supported
- Optical Fiber
