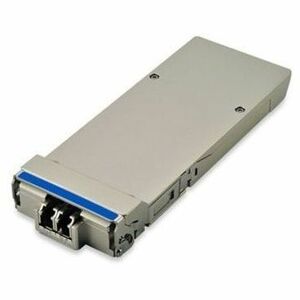

Finisar 2nd Generation CFP2 Module
For Data Networking, Optical Network - 1 x LC Duplex 100GBase-LR4 Network - Optical Fiber - 1294.53 nm, 1296.59 nm, 1299.02 nm, 1301.09 nm, 1303.54 nm, 1305.63 nm, 1308.09 nm, 1310.19 nm Wavelength - Single-mode - 100 Gigabit Ethernet - 100GBase-LR4 - 100 Gbit/s - 10 km Maximum Distance - Hot-pluggable
About This Product
Overview
10km Multi-rate 100Gb/s CFP2 Optical Transceiver Module
2nd generation FTLC1122SDNL 100G CFP2 transceiver modules are designed for use in 100 Gigabit Ethernet and 4x28G OTU4 client interfaces over single mode fiber. They are compliant with the CFP MSA , IEEE 802.3ba 100GBASE-LR4 and OTU4 4I1-9D1F OTL4.4 requirements specified in ITU-T, and IEEE standards, and ITU-T recommendations G.709/Y.1331. Digital diagnostics functions are available via the MDIO interface, as specified by the CFP MSA and Finisar Application Note AN2118 . The transceiver is RoHS-compliant and lead-free per Directive 2011/65/EU , and Finisar Application Note AN-2038.
FEATURES
- Hot-pluggable CFP2 form factor
- Supports 103.1Gb/s and 112Gb/s aggregate bit rates
- Power dissipation < 5W
- RoHS-6 compliant (lead-free)
- Commercial case temperature range of 0°C to 75°C
- Single 3.3V power supply
- Maximum link length of 10km on
- Single Mode Fiber (SMF)
- 4x28Gb/s DFB-based
- LAN-WDM transmitter
- 4x28G electrical interface
- Duplex LC receptacles
- MDIO management interface
APPLICATIONS
- G.959.1-201604, 4I1-9D1F OTL4.4
- G.709/Y.1331 (2016), OTU4 &
- OTUC1(FOIC1.4)
- IEEE 802.3ba 100GBASE-LR4
- CFP2 offers better usage with maximum efficiency and convenience
- With 100GBase-LR4 technology, get up to 100Gbps data transfer rate over optical fiber cable
- 100 Gigabit Ethernet - High bandwidth performance, ease of use and reliable connectivity
- Optical fiber cable compatible - Spans afar and provides speedy data transmission rates between servers and network components
- For transmitting data at gigabit speed over hundreds of miles with little integrity loss, single-mode fiber optic is an ideal solution
- Hot-pluggable form factor allows hassle-free and easy usage with increased efficiency
- CFP2 with data networking application/usage for maximum dependability and convenience
Quick Specifications
- Product Series
- 2nd Generation
- Product Type
- CFP2
- Application/Usage
- Data Networking Optical Network
- Total Number of Ports
- 1
- Connector Type
- LC Duplex
- Interfaces/Ports Details
- 1 x LC Duplex 100GBase-LR4 Network
- Media Type Supported
- Optical Fiber
- Fiber Optic Cable Wavelength
- 1294.53 nm 1296.59 nm 1299.02 nm 1301.09 nm 1303.54 nm 1305.63 nm 1308.09 nm 1310.19 nm
