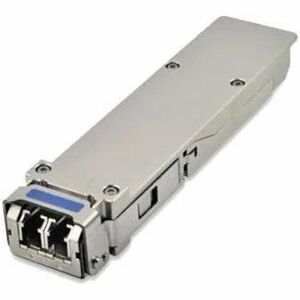

COHERENT FTLC1141RDNL 10km Duplex SMF 100G CFP4 Optical Transceiver
Manufacturer: Finisar Corporation
Mfr. Part: FTLC1141RDNL
For Optical Network, Data Networking - 1 x LC Duplex 100GBase-LR4 Network - Optical Fiber - 1294.53 nm, 1296.59 nm, 1299.02 nm, 1301.09 nm, 1303.54 nm, 1305.63 nm, 1308.09 nm, 1310.19 nm Wavelength - Single-mode100GBase-LR4 - 103.10 Gbit/s - 10 km Maximum Distance - Hot-pluggable
About This Product
Overview
FTLC1141RDNL 100G CFP4 transceiver modules are designed for use in 100 Gigabit Ethernet interfaces over single mode fiber. They are compliant with the CFP MSA1 , IEEE 802.3ba 100GBASE-LR42 and IEEE 802.3bm CAUI-45 . Digital diagnostics functions are available via the MDIO interface, as specified by the CFP MSA and Finisar Application Note AN-20xx4 . The transceiver is RoHS compliant per Directive 2011/65/EU3 .
- Hot-pluggable CFP4 form factor
- Supports 103.1Gb/s aggregate bit rate
- Power dissipation < 5W
- RoHS compliant
- Commercial case temperature range of 0°C to 75°C
- Single 3.3V power supply
- Maximum link length of 10km on
- Single Mode Fiber (SMF)
- 4x25Gb/s DFB-based
- LAN-WDM transmitter
Quick Specifications
- Product Model
- FTLC1141RDNL
- Product Type
- CFP4
- Application/Usage
- Optical Network Data Networking
- Total Number of Ports
- 1
- Connector Type
- LC Duplex
- Interfaces/Ports Details
- 1 x LC Duplex 100GBase-LR4 Network
- Media Type Supported
- Optical Fiber
- Fiber Optic Cable Wavelength
- 1294.53 nm 1296.59 nm 1299.02 nm 1301.09 nm 1303.54 nm 1305.63 nm 1308.09 nm 1310.19 nm
