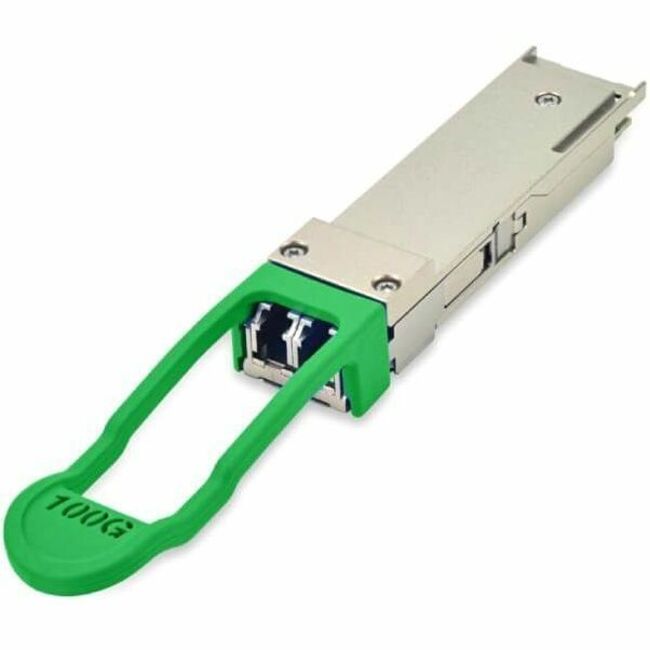

Finisar 100G CWDM4 2km Gen3 QSFP28 Optical Transceiver
Manufacturer: Finisar Corporation
Mfr. Part: FTLC1157RGPL
For Data Networking, Optical Network - 1 x LC Duplex 100GBase-CWDM4 Network - Optical Fiber - Single-mode - 100 Gigabit Ethernet - 100GBase-CWDM4 - 103.10 Gbit/s - 2 km Maximum Distance - Hot-pluggable - 2
About This Product
Overview
FTLC1157RGPL QSFP28 transceiver modules are designed for use in 100 Gigabit Ethernet links on up to 2km of single mode fiber specifically for data center applications. They are compliant with the QSFP28 MSA, CWDM4 MSA, and portions of IEEE P802.3bm. Digital diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA and Application Notes AN-2153 and AN-2154. The optical transceiver is RoHS compliant as described in Application Note AN-2038.
- Hot-pluggable QSFP28 form factor
- Supports 103.1Gb/s aggregate bit rate
- Power dissipation < 3.5W
- RoHS compliant
- Commercial case temperature range of 0°C to +70°C
- Adaptive CTLE
- Single 3.3V power supply
- Loss budget of 5 dB on up to 2km of Single Mode Fiber (SMF) [with KR4 FEC]
- 4x25Gb/s CWDM transmitter
- 4x25G retimed electrical interface
- Duplex LC receptacles
- I2C management interface
Quick Specifications
- Product Type
- QSFP28
- Packaged Quantity
- 2
- Application/Usage
- Data Networking Optical Network
- Total Number of Ports
- 1
- Connector Type
- LC
- Interfaces/Ports Details
- 1 x LC Duplex 100GBase-CWDM4 Network
- Media Type Supported
- Optical Fiber
- Fiber Mode Supported
- Single-mode
