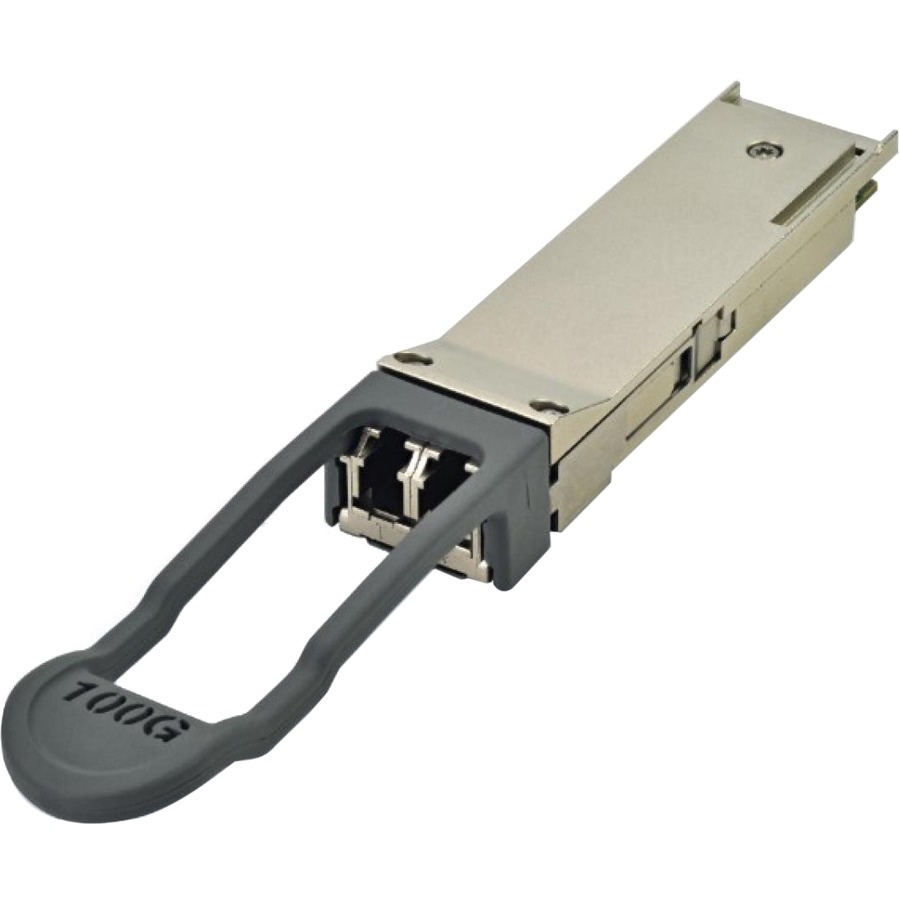

Finisar 100G 100m SWDM4 QSFP28 Optical Transceiver
Manufacturer: Finisar Corporation
Mfr. Part: FTLC9152RGPL
For Data Networking, Optical Network - 1 x LC Duplex 100GBase-SWDM4 Network - Optical Fiber - Multi-mode - 100 Gigabit Ethernet - 100GBase-SWDM4 - Hot-pluggable
About This Product
Overview
Finisar's FTLC9152RGPL 100G QSFP28 transceiver modules are designed for use in 100G Ethernet links over duplex multimode fiber. They are compliant with the QSFP28 MSA and IEEE 802.3bm CAUI-4. Digital diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA and Finisar Application Note AN-2171. The transceiver is RoHS-6 compliant per Directive 2011/65/EU. See Finisar Application Note AN-2038 for more details.
- Hot-pluggable QSFP28 form factor
- Supports 103.1Gb/s aggregate bit rate
- Power dissipation <3.5W
- RoHS-6 compliant
- Commercial case temperature range of 0°C to 70°C
- Single 3.3V power supply
- Maximum link length of 75m/100m/150m on OM3/OM4/OM5 Duplex Multimode Fiber (MMF)
- 4x25Gb/s 850nm VCSEL-based transmitter
- 4x25G CAUI-4 electrical interface
- Duplex LC receptacles
Quick Specifications
- Product Model
- FTLC9152RGPL
- Product Type
- QSFP28
- Application/Usage
- Data Networking Optical Network
- Total Number of Ports
- 1
- Connector Type
- LC
- Interfaces/Ports Details
- 1 x LC Duplex 100GBase-SWDM4 Network
- Media Type Supported
- Optical Fiber
- Fiber Mode Supported
- Multi-mode
