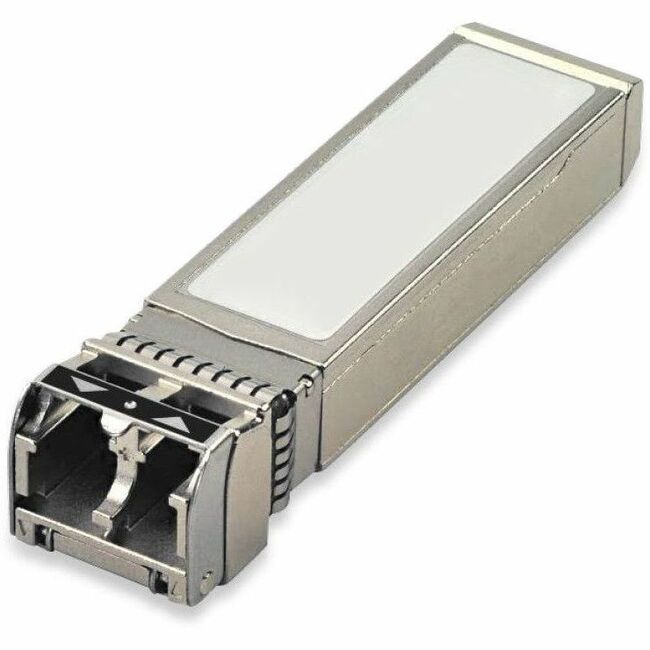

COHERENT FTLF8538P5BCZ SFP+ Module
Manufacturer: Finisar Corporation
Mfr. Part: FTLF8538P5BCL
For Data Networking, Optical Network - 1 x LC Duplex 25GBase-SR Network - Optical Fiber - 50/125 µm - 850 nm, 860 nm, 840 nm Wavelength - Multi-mode - 25 Gigabit Ethernet - 25GBase-SR - 25 Gbit/s - 0.10 km Maximum Distance - Hot-pluggable
About This Product
Overview
25GBASE-SR Low Latency SFP+ Transceiver
FTLF8538P5BCz SFP+ transceivers are designed for use in 25Gb/s data rate over multimode fiber. They are compliant to IEEE802.3by, SFF-8472 Rev 12.2band SFF-8402g, and compatible with SFF-8432aand applicable portions of SFF-8431 Rev. 4.1c. The transceiver is RoHS compliant as described in Application Note AN-2038.
FEATURES
- Up to 25.78 Gb/s bi-directional data links
- Hot-pluggable SFP+ footprint
- Built-in digital diagnostic functions
- 850nm Oxide VCSEL laser transmitter
- Duplex LC connector
- RoHS compliant
- 100m over M5F MMF (50/125 um OM4)
- 70m over M5E MMF (50/125um OM3)
- 1E-12 BER over 30m OM3 / 40m OM4 MMF
- Metal enclosure, for lower EMI
- 1.0W maximum power consumption
- Single 3.3V power supply
- Operating temperature range: 0°C to 70°C
APPLICATIONS
- 25GE SR
- 100G SR4 fan out to 4x25GE SR
- eCPRI
- SFP+ offers better usage with maximum efficiency and convenience
- 25GBase-SR network technology for convenient, easy sharing of data and information over the network with maximum internet usage feasibility
- 25 Gigabit Ethernet technology delivers economical and power-efficient connectivity
- Optical fiber cable compatible - Spans afar and provides speedy data transmission rates between servers and network components
- Typically used for short distance, multi-mode fiber optic is ideal to carry data and transmit audio/video applications within a building
- Hot-pluggable form factor for your convenience and simplicity of usage
- SFP+ with data networking application/usage for maximum dependability and convenience
Quick Specifications
- Product Model
- FTLF8538P5BCZ
- Product Type
- SFP+
- Application/Usage
- Data Networking Optical Network
- Total Number of Ports
- 1
- Connector Type
- LC Duplex
- Interfaces/Ports Details
- 1 x LC Duplex 25GBase-SR Network
- Media Type Supported
- Optical Fiber
- Fiber Optic Cable Core/Cladding Specification
- 50/125 µm
