Finisar 10Gb/s, 10km XFP Optical Transceiver
For Data Networking, Optical NetworkOptical Fiber - Single-mode - 10 Gigabit Ethernet - 10GBase-LR/LW - 11.32 Gbit/s - 10 km Maximum Distance - Hot-pluggable - 2
About This Product
Overview

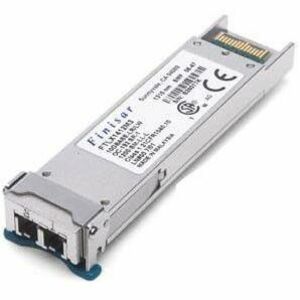

Finisar's FTLX1413M3BCL Small Form Factor 10Gb/s (XFP) transceivers are compliant with the current XFP Multi-Source Agreement (MSA) Specification1 . They are a true multi-protocol transceiver complying with SONET OC-192 SR-1, SDH STM I64.1, 10-Gigabit Ethernet 10GBASE-LR /LW per IEEE 802.3ae, 10G Fibre Channel 1200-SM-LL-L, 8G Fibre Channel 800-SM-LC-L, 10G CPRI, and ITU-T. G709 OTN/FEC protocols OTU1e, OTU2, and OTU2e. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XFP MSA. The optical transceiver is compliant per the RoHS Directive 2011/65/EU3 .
- Supports 8.5Gb/s to 11.32Gb/s bit rates
- Power dissipation <1.5W
- Commercial temperature range: -5°C to 75°C
- RoHS-6 Compliant (lead-free)
- Hot-pluggable XFP footprint
- Single Power supply: 3.3V
- Maximum link length of 10km
- Uncooled 1310nm DFB laser
- No Reference Clock required
- Built-in digital diagnostic functions
Quick Specifications
- Product Type
- XFP
- Packaged Quantity
- 2
- Application/Usage
- Data Networking Optical Network
- Total Number of Ports
- 2
- Connector Type
- LC
- Media Type Supported
- Optical Fiber
- Fiber Mode Supported
- Single-mode
- Ethernet Technology
- 10 Gigabit Ethernet
