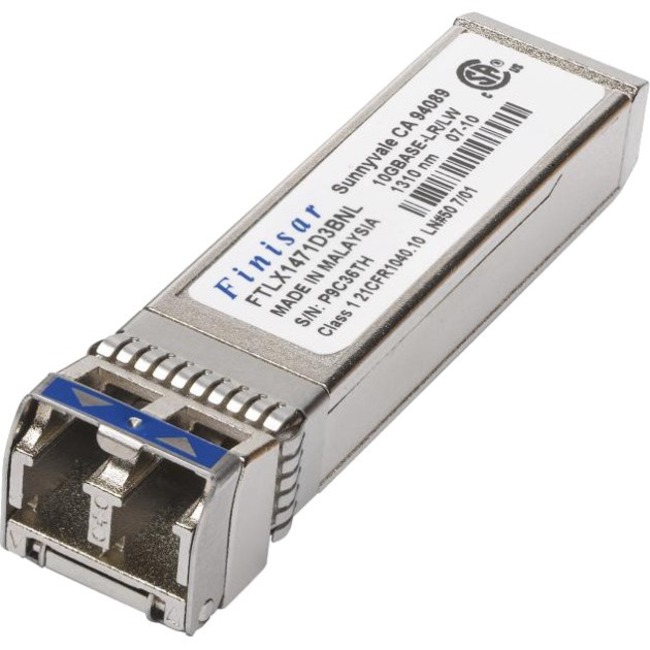

Finisar SFP+ Module
Manufacturer: Finisar Corporation
Mfr. Part: FTLX1475D3BNL
For Data Networking, Optical Network - 1 x LC Duplex Fiber Channel Network - Optical Fiber - Single-mode - 10 Gigabit Ethernet - 10GBase-LR/LW, Fiber Channel - Hot-pluggable
About This Product
Overview
Extended Temperature FTLX1475D3BNL 10Gb/s Enhanced Small Form Factor Pluggable SFP+ transceivers are designed for use in 10-Gigabit Ethernet links up to 10km over Single Mode fiber. They are compliant with SFF-8431, SFF-8432 and IEEE 802.3ae 10GBASE-LR/LW and 10G Fibre Channel 1200-SM-LL-L. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472. The FTLX1475D3BNL is a "limiting module" , i.e., it employs a limiting receiver. The optical transceiver is RoHS compliant as described in Application Note AN-2038.
- Hot-pluggable SFP+ footprint
- Supports 9.95 to 10.5Gb/s bit rates
- Power dissipation < 1W
- RoHS compliant
- Single 3.3V power supply
- Maximum link length of 10km
- Uncooled 1310nm DFB laser
- Limiting electrical interface receiver
- Duplex LC connector
- Built-in digital diagnostic functions
Quick Specifications
- Product Type
- SFP+
- Application/Usage
- Data Networking Optical Network
- Total Number of Ports
- 1
- Connector Type
- LC
- Interfaces/Ports Details
- 1 x LC Duplex Fiber Channel Network
- Media Type Supported
- Optical Fiber
- Fiber Mode Supported
- Single-mode
- Ethernet Technology
- 10 Gigabit Ethernet
