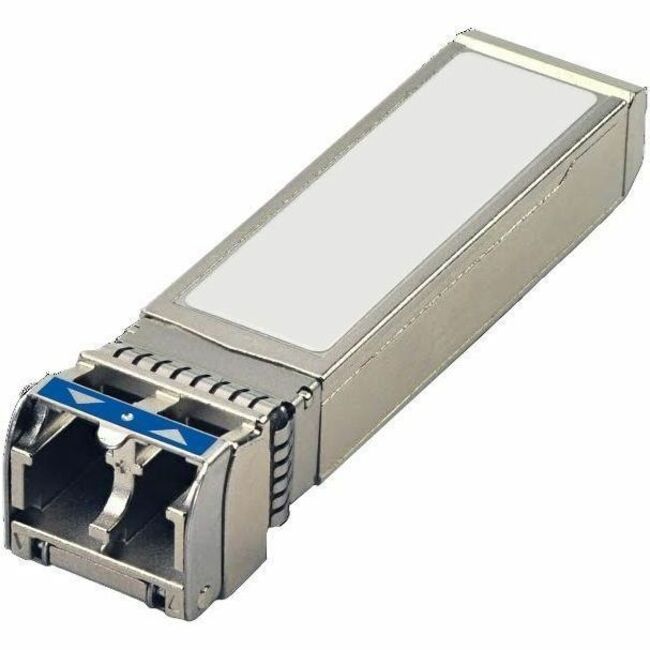

COHERENT SFP+ Module
For Data Networking, Optical Network - 1 x Duplex LC 10GBASE-LR/LW Network - Optical Fiber - 1310 nm Wavelength - Single-mode - 10 Gigabit Ethernet - 10GBase-LR/LW - 10.50 Gbit/s - 10 km Maximum Distance - Hot-pluggable - 1 / Piece
About This Product
Overview
FTLX1475D3BNV 10Gb/s Enhanced Small Form Factor Pluggable SFP+ transceivers are designed for use in 1-Gigabit and 10-Gigabit Ethernet links up to 10km over Single Mode fiber. They are compliant with SFF-84311 , SFF-84322 and IEEE 802.3ae 10GBASE-LR/LW3 , and 10G Fibre Channel 1200-SM-LL-L4. This product is for applications specifically designed for 10G SFP+ ports and 1G/10G SFP+ ports and not native 1G SFP ports. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-84725 . TheFTLX1475D3BNV employs a limiting receiver. FTLX1475D3BNV transceivers are RoHS compliant per Directive 2011/65/EU6 , and Finisar Application Note AN-2038
- Hot-pluggable SFP+ footprint
- Supports rate selectable 1.25Gb/s and 9.95 to 10.5Gb/s
- bit rates
- Power dissipation < 1W
- RoHS-6 compliant (lead-free)
- Extended temperature range -5°C to 85°C
- Single 3.3V power supply
- Maximum link length of 10km
- Uncooled 1310nm DFB laser
- Receiver limiting electrical interface
- Duplex LC connector
- Built-in digital diagnostic functions
Quick Specifications
- Product Type
- SFP+
- Packaged Quantity
- 1 / Piece
- Application/Usage
- Data Networking Optical Network
- Total Number of Ports
- 1
- Connector Type
- LC Duplex
- Interfaces/Ports Details
- 1 x Duplex LC 10GBASE-LR/LW Network
- Media Type Supported
- Optical Fiber
- Fiber Optic Cable Wavelength
- 1310 nm
