Finisar SFP+ Module
For Data Networking, Optical Network - 2 x LC Duplex 10GBase-LR/LW Network - Optical Fiber - Single-mode - 10 Gigabit Ethernet - 10GBase-LR/LW - 10.50 Gbit/s - 10 km Maximum Distance - Hot-pluggable
About This Product
Overview

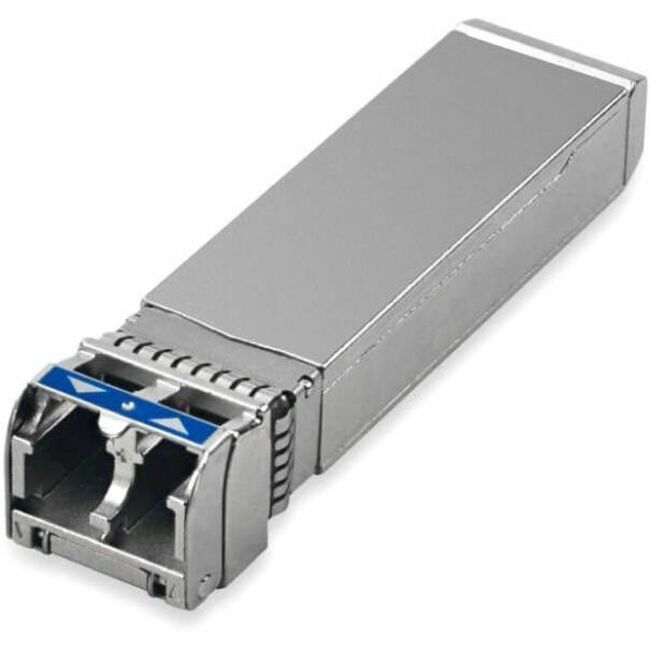

FTLX1475D3BTL 10Gb/s Enhanced Small Form Factor Pluggable SFP+ transceivers are designed for use in 10-Gigabit Ethernet links up to 10km over Single Mode fiber. They are compliant with SFF-8431, SFF-8432 and IEEE 802.3ae 10GBASE-LR/LW and 10G Fibre Channel 1200-SM-LL-L, and can support CPRI options 7 (9.83Gb/s) and 8 (10.137Gb/s) over 10km links. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472. The FTLX1475D3BTL uses a limiting electrical interface receiver. The optical transceiver is RoHS compliant as described in Application Note AN-2038.
- SFP+ offers better usage with maximum efficiency and convenience
- With 10GBase-LR/LW technology, enjoy up to 10Gbps data transfer rate over optical fiber cable
- Enjoy flexibility and scalability with data transfer rate of up to 10 Gbps with 10 Gigabit Ethernet technology
- Optical fiber cable compatible - Spans afar and provides speedy data transmission rates between servers and network components
- For transmitting data at gigabit speed over hundreds of miles with little integrity loss, single-mode fiber optic is an ideal solution
- Hot-pluggable form factor for your convenience and simplicity of usage
- SFP+ with data networking application/usage for reliability and maximum efficiency
Quick Specifications
- Product Type
- SFP+
- Application/Usage
- Data Networking Optical Network
- Total Number of Ports
- 2
- Connector Type
- LC
- Interfaces/Ports Details
- 2 x LC Duplex 10GBase-LR/LW Network
- Media Type Supported
- Optical Fiber
- Fiber Mode Supported
- Single-mode
- Ethernet Technology
- 10 Gigabit Ethernet
