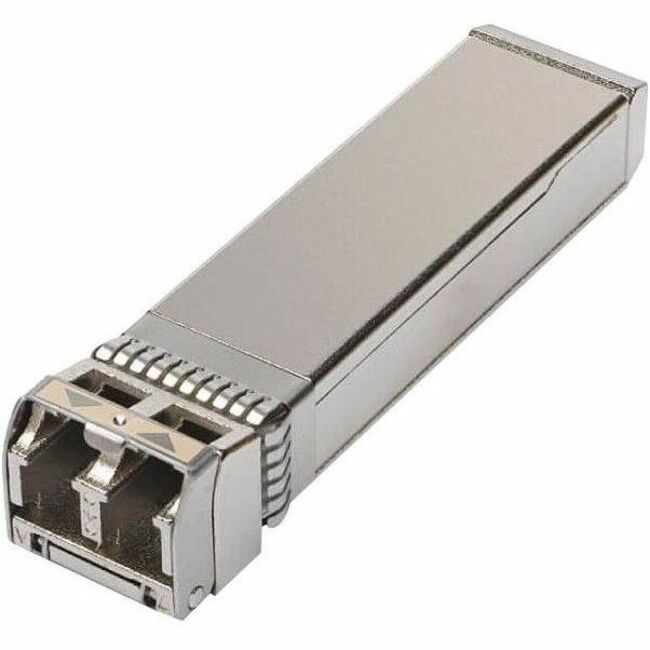

Finisar SFP+ Module
For Data Networking, Optical Network - 10GBase-SR/SW Network - Optical Fiber - Multi-mode - 10 Gigabit Ethernet - 10GBase-SR/SW0.40 m Maximum Distance - Hot-pluggable
About This Product
Overview
Finisar's FTLX8574D3BNL Extended Temperature 10Gb/s SFP+ transceivers are designed for use in 10-Gigabit Ethernet links over multimode fiber. They are compliant with SFF-84311 , SFF-84322 , IEEE 802.3-2012 10GBASE-SR/SW3 and 10G Fibre Channel 1200-Mx-SN-I4 . Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-84725 . The FTLX8574D3BNL is a "limiting module", i.e., it employs a limiting receiver. Host board designers using an EDC PHY IC should follow the IC manufacturer's recommended settings for interoperating the host-board EDC PHY with a limiting receiver SFP+ module. The optical transceiver is compliant per the RoHS Directive 2011/65/EU6.
- Hot-pluggable SFP+ footprint
- Supports 9.95 to 10.5 Gb/s bit rates
- Power dissipation < 1W
- RoHS-6 compliant (lead-free)
- Commercial temperature range -5°C to 85°C
- Single 3.3Vpower supply
- Maximum link length of 400m on OM4 MMF
- Uncooled 850nm VCSEL laser
- Receiver limiting electrical interface
- Duplex LC connector
- Built-in digital diagnostic functions
Quick Specifications
- Product Type
- SFP+
- Application/Usage
- Data Networking Optical Network
- Connector Type
- LC
- Interfaces/Ports Details
- 10GBase-SR/SW Network
- Media Type Supported
- Optical Fiber
- Fiber Mode Supported
- Multi-mode
- Ethernet Technology
- 10 Gigabit Ethernet
- Network Technology
- 10GBase-SR/SW
