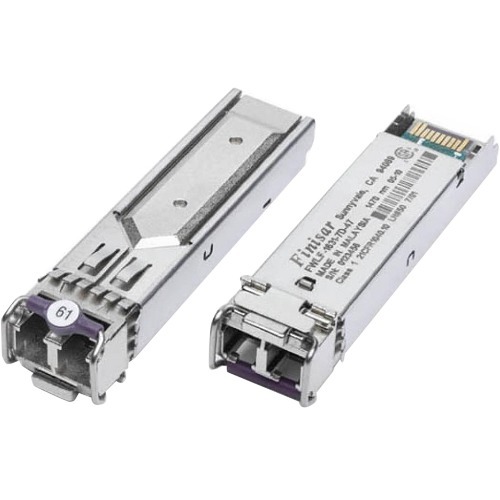

Finisar OC-48/STM-16 Fixed Channel DWDM 120km SFP Optical Transceiver
For Data Networking, Optical Network - 1 x LC OC-48/STM-16 Network - Optical FiberGigabit Ethernet, 2.7 Gigabit Ethernet - OC-48/STM-16, Fiber Channel, OC-12, OC-3, OC-48, SONET/SDH - Hot-pluggable
About This Product
Overview
Finisar's FWLF1632xx optical transceivers are Small Form Factor Pluggable SFP transceivers designed for use in Dense Wavelength-Division Multiplexing (DWDM) links, for up to 120km link lengths and up to 2.7G bit rates.
The FWLF1632xx SFP transceivers are designed for service providers deploying SONET and DWDM networking equipment in metropolitan access and core networks. They are also compatible to Gigabit Ethernet data rate.
The FWLF1632xx SFP transceivers are RoHS 6 compliant. Basic digital diagnostic features are implemented as described in Finisar Application Note AN-2030. Enhanced diagnostic features are available as described in the DWDM SFP MSA.
- Hot-pluggable SFP footprint
- Up to 2.7 Gb/s bi-directional data links
- 100GHz DWDM ITU Grid, C-Band
- Low dispersion DFB laser with 120km reach performance
- Extended link budget with APD receiver technology
- Wavelength controlled within ±0.1nm over life and temperature
- Operating temperature: -5°C to 70°C
Quick Specifications
- Product Type
- SFP (mini-GBIC)
- Application/Usage
- Data Networking Optical Network
- Total Number of Ports
- 1
- Connector Type
- LC
- Interfaces/Ports Details
- 1 x LC OC-48/STM-16 Network
- Media Type Supported
- Optical Fiber
- Ethernet Technology
- Gigabit Ethernet 2.7 Gigabit Ethernet
- Network Technology
- OC-48/STM-16 Fiber Channel OC-12 OC-3 OC-48 SONET/SDH
