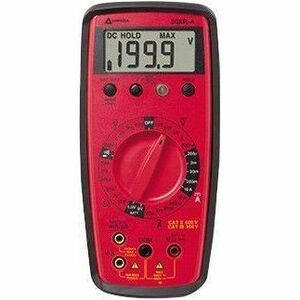

Amprobe 30XR-A Digital Multimeter with VolTect Non-Contact Voltage Detection
Manufacturer: Fluke Corporation
Mfr. Part: 30XR-A
500 V, 10 A AC - 500 V, 10 A DC - Data Hold, Low Battery Indication, Non-contact Voltage Detection
About This Product
Overview
For non-contact voltage testing, Amprobe 30XR-A Digital Multimeter offers Voltect™ non-contact voltage technology built into the 30XR-A along with a full complement of measurement functions.
- Non-contact voltage detector
- Separate door for easy battery and fuse access
- Manual ranging; display: 3-1/2 digit LCD, 1999 counts
- Display update rate: 2.5/sec, nominal
- Power battery: 9 V NEDA 1604, JIS 006P, IEC 6F22
- Operating temperature: 0 °C to 45 °C at < 70 % R.H.
- Storage temperature: -20 °C to 60 °C, 0 to 80 % R.H. with battery removed from meter
- Low battery indication
- Overrange indication
- Min/max and data Hold
Quick Specifications
- Product Model
- 30XR-A
- Product Type
- Multimeter
- Meter Type
- Digital
- Measurement Type
- AC Voltage DC Voltage DC Current AC Current Resistance Continuity Diode Test
- Ranging Type
- Manual
- Maximum AC Voltage Measurement
- 500 V
- Maximum DC Voltage Measurement
- 500 V
- Maximum AC Current Measurement
- 10 A
