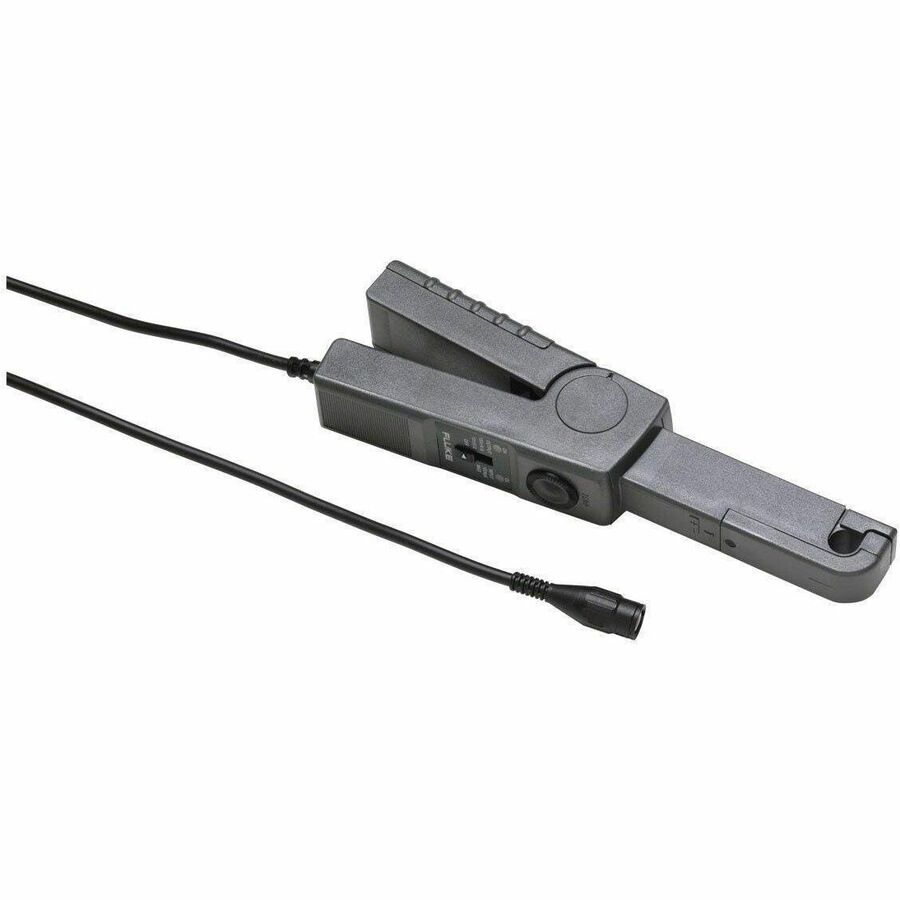

Fluke 80i-110s AC/DC Current Clamp
Manufacturer: Fluke Corporation
Mfr. Part: 80I-110S
About This Product
Overview
The 80I-110s is compatible with any Fluke ScopeMeter Test Tool, Power Harmonics Analyzer, Oscilloscope, Multimeter, or other voltage measurement device that has the following features: BNC input connectors or if using a meter convert the banana plugs to a BNC connector using the adapter PM9081/001.
- Current Range: 0.1 to 100A DC or 0.1 to 100A AC
- Basic Accuracy (DC to 1kHz):
- 100mV/A setting: 50mA to 10A +/- 3% of reading + 50mA
- 10mV/A setting: 50mA to 40A +/- 4% of reading + 50mA
- 40A to 80A +/- 12% of reading + 50mA
- 80 to 100A +/- 15% of reading
- Output Signal: 10A range: 100mV/A | 100A range: 10mV/A
- Bandwidth: 1Hz to 20kHz
- Working Voltage: 600V AC rms
- Maximum Conductor Size: 11.8 mm (.46 inch) diameter
- Safety Rating: IEC 1010 and CSA-C22.2 No. 1010-1 Installation Category II, Working Voltage 600V
Quick Specifications
- Product Model
- 80I-110S
- Product Type
- Current Clamp
- Connector Type
- BNC
- Application/Usage
- Microscope Oscilloscope Voltage Measurement Device Power Harmonics Analyzer Cabinet
- Compatibility
- Fluke: ScopeMeter Test Tool Power Harmonics Analyzer Oscilloscope Multimeter Voltage Measurement Device
