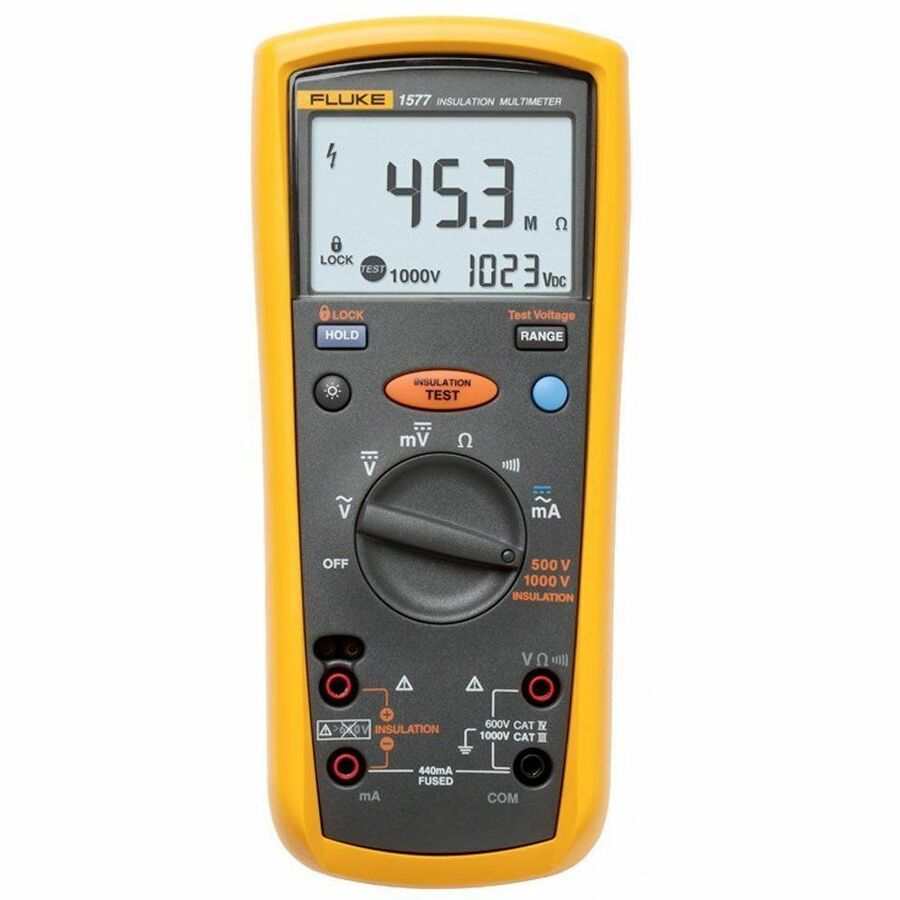

Fluke 1577 Insulation Multimeter
Manufacturer: Fluke Corporation
Mfr. Part: FLUKE-1577
1000 V, 400 mA AC - 1000 V, 400 mA DC - Auto Power Off
About This Product
Overview
Product overview: Fluke 1577 Insulation Multimeter
Two powerful tools in one
The Fluke 1577 Insulation Multimeter combine a digital insulation tester with a full-featured, true RMS digital multimeter in a single, compact, handheld unit, which provides maximum versatility for both troubleshooting and preventative maintenance.
Whether you work on motors, generators, cables, or switch gear, the Fluke 1577 Insulation Multimeter is ideally suited to help you with your tasks and at a cost that is far less than buying the two products.
- Insulation test voltages 500 V, 1000 V
- Insulation test: 0.1 MΩ to 600 MΩ
- Auto discharge of capacitive voltage
- AC/DC Voltage and milliamps
- Three-year warranty
- DC millivolts
- Resistance (0.1 Ω to 50 MΩ)
- Continuity
- Remote probe, test leads, alligator clips
- Rugged, utility hard case
- Auto power off to save battery power
- True RMS
- Large display with backlight
- Live circuit detection prevents insulation test if voltage > 30 V is detected for added user protection
- CAT III 1000V, CAT IV 600V measurement category
- Accepts optional Fluke TPAKTM magnetic hanging system to free your hands for other work
Quick Specifications
- Product Model
- 1577
- Product Type
- Multimeter
- Meter Type
- Digital
- Measurement Type
- DC Current DC Voltage AC Current AC Voltage Resistance
- True RMS
- Yes
- Maximum AC Voltage Measurement
- 1000 V
- Maximum DC Voltage Measurement
- 1000 V
- Maximum AC Current Measurement
- 400 mA
