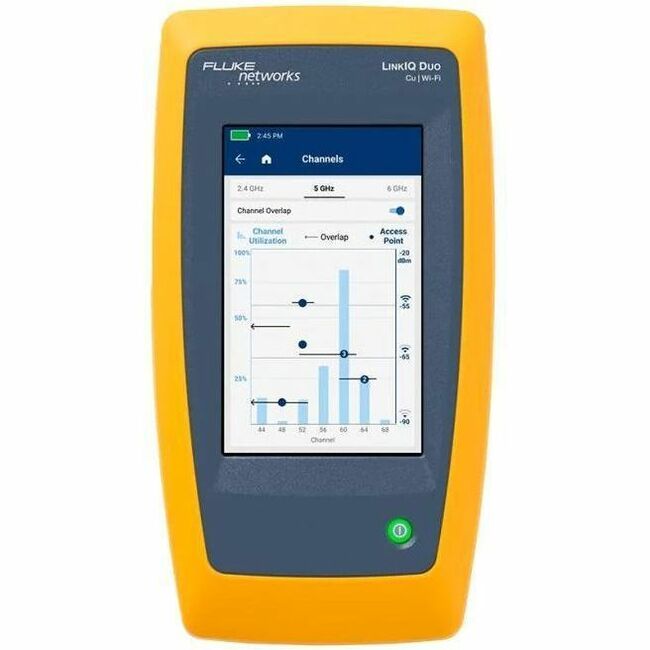

Fluke LinkIQ LIQ-DUO Testing Device
Cable Testing, Wireless Connectivity Testing, Network Testing, Network Troubleshoot, Wiremap, Cable Fault Testing - USB - Network (RJ-45) - Twisted Pair - 10 Gigabit Ethernet - 10Base-T, 10GBase-T - 1Number of Batteries Supported - AA - Battery Included - Battery Rechargeable - Lithium Ion (Li-Ion)
About This Product
Overview
The LinkIQ™ Cable+Wi-Fi+Network Tester is the solution to verify cable performance up to 10G and solve network connectivity problems. LinkIQ validates cable performance using frequency-based measurements to calculate maximum bandwidth (10BASE-T to 10GBASE-T). LinkIQ also provides IPv4 and v6 ping; nearest switch diagnostics (IP address, name, port / VLAN number, and advertised data rates); Ethernet Alliance-certified Power over Ethernet testing (hardware/software negotiation and loaded voltage and power tests). Wi-Fi analysis to Wi-Fi 6E, including networks, channels, and access points. Additional features include cable toning, port blink, optional remote office locators, and the ability to manage results via LinkWare™ PC.
- Cable performance testing up to 10GBASE-T plus troubleshooting (distance to fault, wire map, toning)
- Network features include IPv4 and v6 ping, nearest switch diagnostics (IP address, name, port / VLAN number, and advertised data rates).
- Ethernet Alliance-certified PoE Verification detects the PoE class (1-8) and power, and performs a load test of available PoE from the connected switch
- Wi-Fi analysis to Wi-Fi 6E, including networks, channels, and access points
Quick Specifications
- Product Line
- LinkIQ
- Product Model
- LIQ-DUO
- Packaged Quantity
- 1
- Product Type
- Testing Device
- Device Function
- Cable Testing Wireless Connectivity Testing Network Testing Network Troubleshoot Wiremap Cable Fault Testing
- USB
- Yes
- Network (RJ-45)
- Yes
- Media Type Supported
- Twisted Pair
