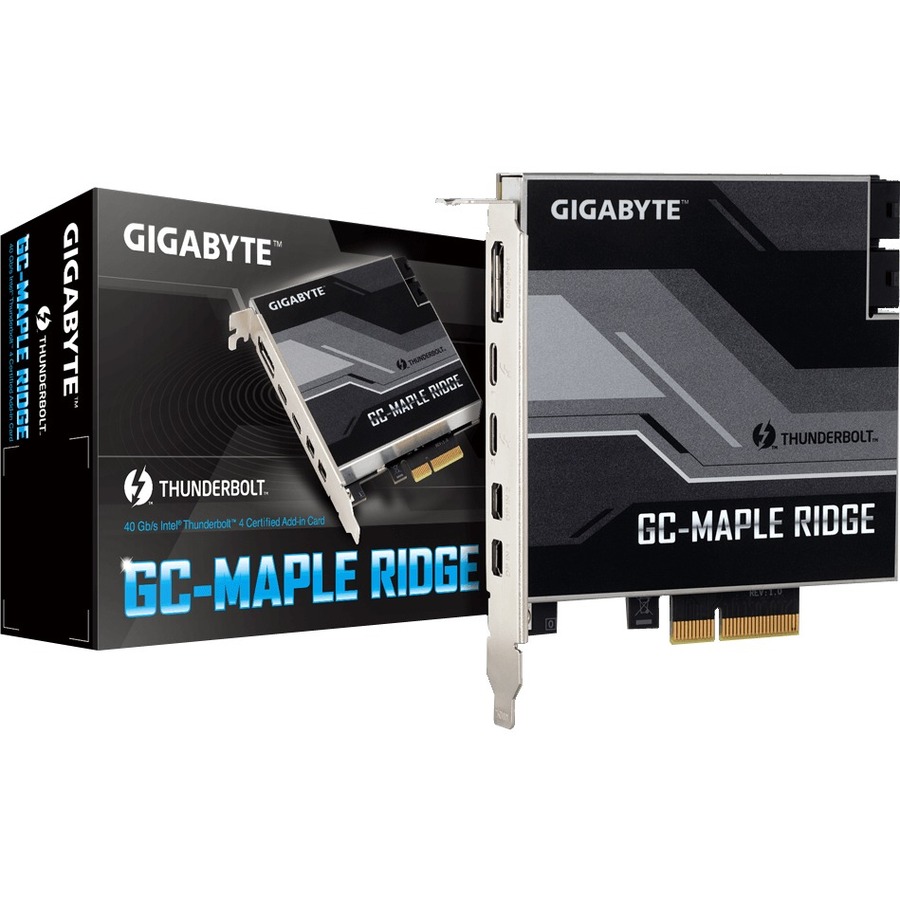

GIGABYTE GC-MAPLE RIDGE (rev. 1.0)
PCI Express 3.0 x4 - Plug-in Card - 1 Thunderbolt Port(s) - PC
About This Product
Overview
40 Gb/s Intel® Thunderbolt™ 4 Certified Add-in Card
The GC-MAPLE RIDGE offers an easy way to upgrade GIGABYTE Thunderbolt™ ready motherboards with the new and faster Thunderbolt™ 4 connectivity without having to upgrade to a whole new system.
Port 1 : Support 5V/3A 9V/3A 15V/3A 19V/5A Power Delivery Spec
Port 2 : Support 5V/3A 9V/3A Power Delivery Spec
Dual Thunderbolt™ 4 - The fastest 40Gb/s single-wire connection
Delivers speeds of up to 40Gb/s-- that's 2 times faster than Thunderbolt™ 2 and 8 times faster than USB3. Thunderbolt™ 4 provides the fastest connection to any dock, display and device. A single port can daisy-chain up to 5 Thunderbolt devices without an additional hub or switch.
Daisy-chain Multiple Devices
Support for DisplayPort 1.4 makes Thunderbolt™ 4 a must have for any enthusiast. GIGABYTE GC-MAPLE RIDGE support two displays in 4K resolution at 60 FPS. In addition, Thunderbolt™ 4 over USB Type-C™ has revolutionary industry-first features such as Power Delivery 3.0, and the ability to daisy-chain up to 10 devices thanks to the dual USB Type-C™ ports.
Certified Motherboards with GC-MAPLE RIDGE
The GC-MAPLE RIDGE is compatible with GIGABYTE motherboards that featured a Thunderbolt™ header, refer the list as below.
- Intel® Thunderbolt™ 4 Certified add-in card
- Intel® JHL8540 Thunderbolt™ 4 controller
- Dual Thunderbolt™ 4 Ports (USB Type-C™)
- Max Bandwidth 40 Gb/s
- DisplayPort 1.4 Capable with 4K Video Throughout
- Daisy-chain up to 10 Devices (5 devices per port)
- Support PD3.0 standard (up to 97W)
Quick Specifications
- Product Model
- GC-MAPLE RIDGE (rev. 1.0)
- Product Type
- Thunderbolt Adapter
- Host Interface
- PCI Express 3.0 x4
- Number of Thunderbolt Ports
- 1
- Form Factor
- Plug-in Card
- Platform Supported
- PC
- Environmentally Friendly
- Yes
- Environmental Compliance
- Waste Electrical and Electronic Equipment Directive (WEEE)
