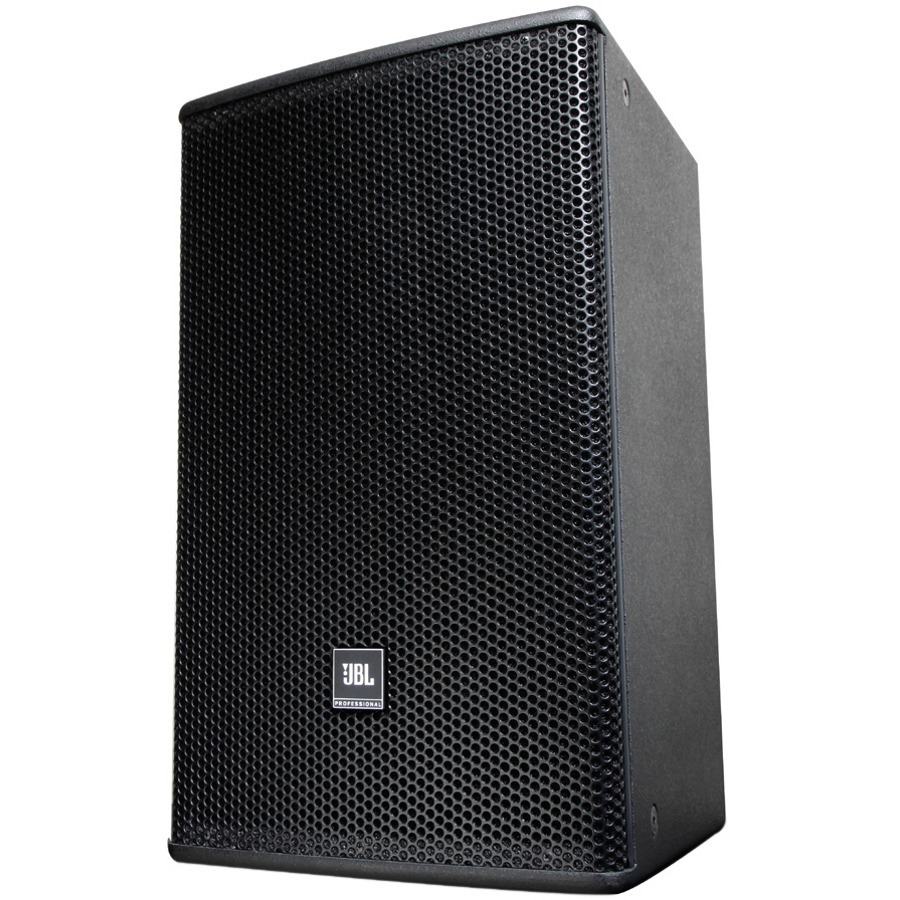

JBL Professional AC266 2-way Wall Mountable Speaker - 250 W RMS - Black Textured

Manufacturer: Harman International Industries, Inc
Mfr. Part: AC266

1000 W (PMPO) - 12.20" - 0.98" - 80 Hz to 18 kHz - 8 Ohm

JBL Professional AC266 2-way Wall Mountable Speaker - 250 W RMS - Black Textured

About This Product

Overview

Two-Way Full-Range Loudspeaker with 1 x 12"" LF

AC266 is a compact 2-way full-range loudspeaker system comprised of one 310 mm (12 in) low frequency driver and one 25 mm (1 in) exit/35 mm (1.5 in) voice-coil compression driver. The horn provides 60° by 60° coverage in vertical and horizontal orientation. High-slope passive crossovers minimize band overlap and well-controlled offaxis response. The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of an MultiMount® or similar type mounting. AC266 is part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications.

  • Robust 15mm enclosure with black textured finish
  • 310 mm (12 in) LF transducer
  • 60° x 60° Waveguide with a 25 mm (1 in) exit 35mm (1.5"") diaphragm compression driver
  • Dual Neutrik NL4 connectors plus screw terminals
  • Multiple attachment points for ultimate flexibility

Quick Specifications

Product Model
AC266
Product Type
Speaker
Crossover Type
2-way
RMS Output Power
250 W
PMPO Output Power
1000 W
Woofer Driver Size
12.20"
Tweeter Driver Size
0.98"
Minimum Frequency Response
80 Hz
