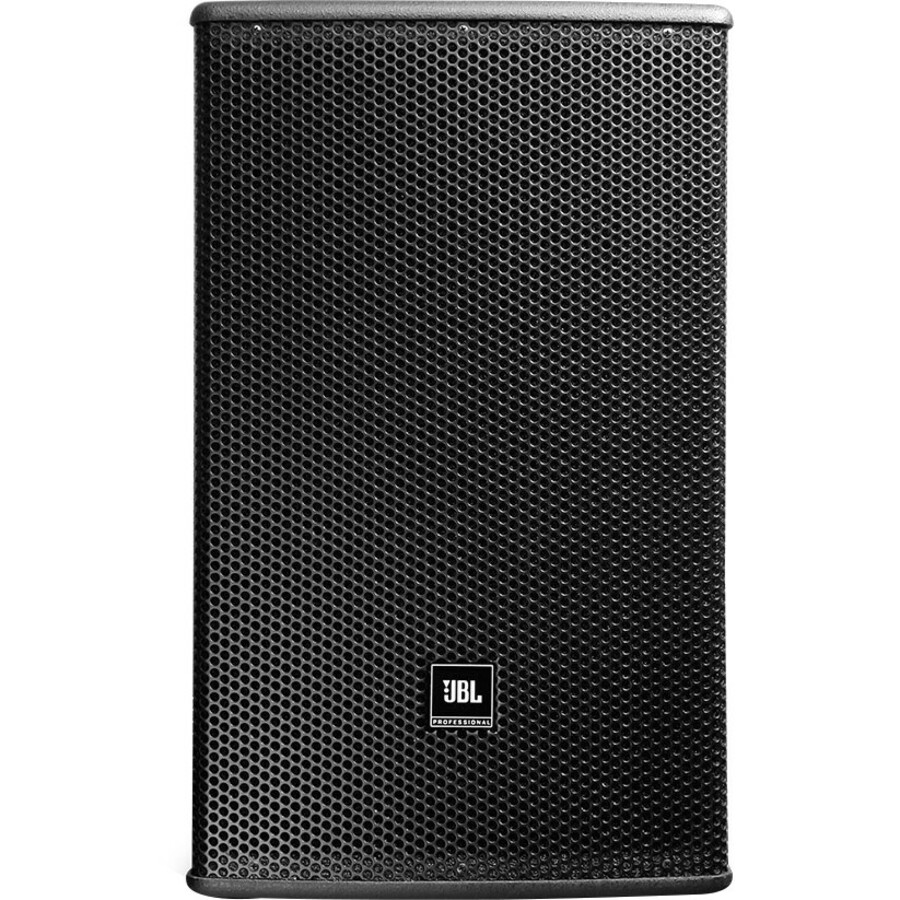

JBL Professional AE Expansion AC566 2-way Wall Mountable Speaker - 250 W RMS - Black
1000 W (PMPO) - 15" - 1" - 75 Hz to 18 kHz - 8 Ohm
About This Product
Overview
Two-Way Full-Range Loudspeaker System with 1 x 15" LF
AC566 is a compact 2-way full-range loudspeaker system comprised of one 384 mm (15 in) low frequency driver and one 25 mm (1 in) exit/35 mm (1.5 in) voice-coil compression driver. The horn provides 60° by 60° coverage in vertical and horizontal orientation. High-slope passive crossovers minimize band overlap and well-controlled offaxis response. The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of an MultiMount® or similar type mounting. AC566 is part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications
- Robust 15mm enclosure with black textured finish
- 384 mm (15 in) LF transducer
- 60° x 60° Waveguide with a 25 mm (1 in) exit 35mm (1.5") diaphragm compression driver
- Dual Neutrik NL4 connectors plus screw terminals
- Multiple attachment points for ultimate flexibility
Quick Specifications
- Product Line
- AE Expansion
- Product Model
- AC566
- Product Type
- Speaker
- Crossover Type
- 2-way
- RMS Output Power
- 250 W
- PMPO Output Power
- 1000 W
- Woofer Driver Size
- 15"
- Tweeter Driver Size
- 1"
