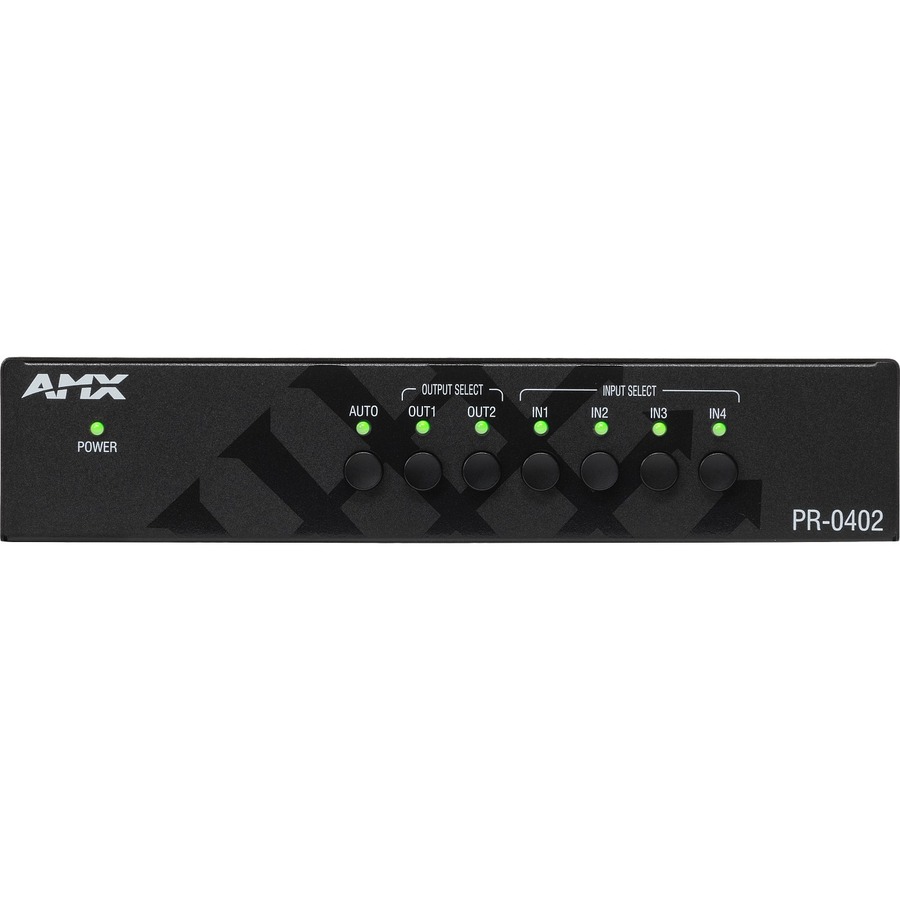

AMX 4x2 4K60 HDMI Switcher

The AMX Precis 4x2 4K60 HDMI Switcher is an extremely affordable yet fully featured HDMI video routing solution for small to medium installations. Featuring 4 HDMI inputs and 2 HDMI outputs, it includes best-in-class capabilities like pixel-for-pixel video reproduction, comprehensive EDID management, automatic or manual switching modes, and extreme control flexibility with an open control API and a simple-tomanage web interface.

The PR-0402 supports high quality HDMI 2.0, HDCP 2.2, High Dynamic Range (HDR), and 36-bit per pixel Deep Color. Automatic and manual switching modes plus onboard dynamic audio de-embedding offer maximum configuration flexibility. Combining a robust matrix switcher and a highly affordable price point backed by over 30 years of industry-leading matrix switching experience, the AMX Precis PR-0402 can be trusted to deliver an exceptional switching solution.

Common Applications

The Precis PR-0402 4K60 HDMI Switcher is the ideal choice for beautiful, cost effective 4K60 4:4:4 matrix switching in meeting spaces, classrooms, lecture halls, houses of worship and more.

Features

Perfect 4K60 4:4:4 Video - Ideal for users that can benefit from processing the full fidelity of their displays

HDMI 2.0 & HDCP 2.2 - Supports the latest video standards to realize the full capabilities of HDMI interfaces

High Dynamic Range (HDR) and Deep Color Support - Support HDR10, HDR10+, Dolby Vision and 36-bit per pixel deep color.

Automatic and Manual Switching Modes - Automatic switching can be leveraged to create a touch-free experience

EDID Management - Provides comprehensive management of EDID to ensure that every source is displayed at the optimal resolution and format

Audio De-Embedding - Includes the convenience of analog audio de-embedding from each HDMI output separately

Multiple Audio Format Support - PCM 2-Channel, PCM Multi-Channel, Dolby Digital, Dolby Digital Plus, Dolby Atmos, Dolby TrueHD, DTS, DTS HD MA

H-Control Upgradable - Ready to support H-control in the future by firmware re-writing via USB.

Multiple Control Options - Multiple control options are available including: Open API Control over IP and Serial, full Web GUI console, and front panel buttons
