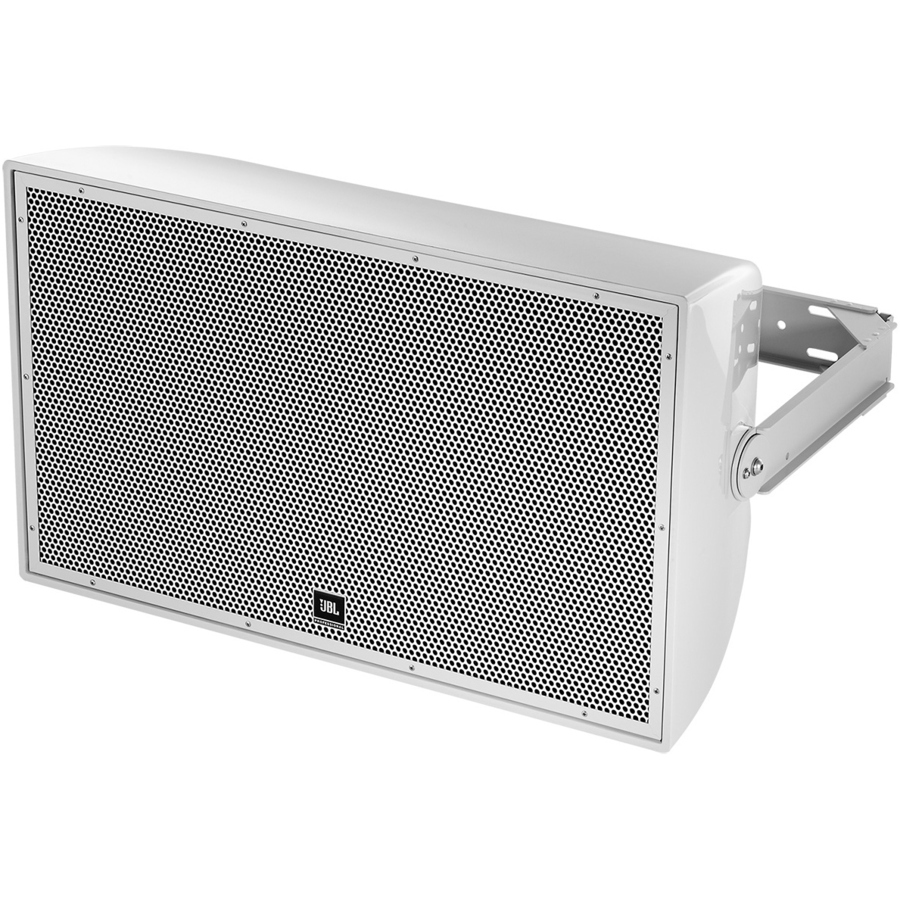

JBL Professional AW526-LS 2-way Outdoor Speaker - 400 W RMS - Gray
Manufacturer: Harman International Industries, Inc
Mfr. Part: AW526-LS
1600 W (PMPO) - 15" - 1.50" - 86 Hz to 17 kHz - 8 Ohm
About This Product
Overview
Parts are sealed on LS models (non-LS photo shown).
High Power 2-Way All Weather Loudspeaker with 1 x 15"" LF for Life Safety Applications
High Power 2-Way All Weather Loudspeaker with 1 x 15"" LF for Life Safety Applications
The AW526-LS is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 120° x 60° coverage. The waveguide is rotatable so the loudspeaker system can used in either the vertical or horizontal orientation. This loudspeaker is EN 54-24 Compliant for life safety applications. The system is equipped with a 400 W 70/100V transformer.
- Weather-Resistant, All Fiberglass Enclosure
- EN 54-24 Compliant for life safety applications
- 120° x 60° Coverage
- 2265H Differential Drive® Low-Frequency Driver
- 2432H High Frequency Compression Driver
- Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
- Rotatable waveguide for vertical or horizontal orientation
- Available in Gray and Black finish
- 400 W, 70/100V Transformer Included
- U-type Mounting Bracket Included
Quick Specifications
- Product Model
- AW526-LS
- Product Type
- Speaker
- Crossover Type
- 2-way
- RMS Output Power
- 400 W
- PMPO Output Power
- 1600 W
- Woofer Driver Size
- 15"
- Tweeter Driver Size
- 1.50"
- Minimum Frequency Response
- 86 Hz
