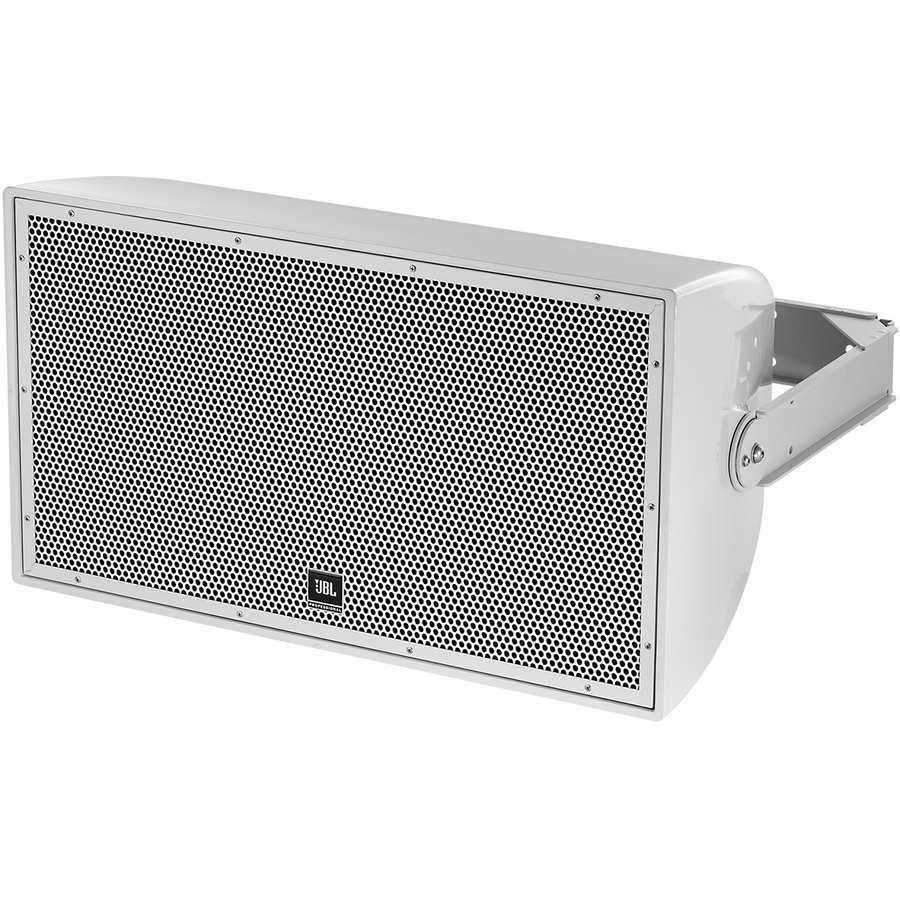

JBL Professional AW566 2-way Speaker - 600 W RMS - Gray
2400 W (PMPO) - 15" - 1.50" - 54 Hz to 18 kHz - 8 Ohm

About This Product
Overview
The AW566 is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H-1 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 60° x 60° coverage. The loudspeaker system can used in either the vertical or horizontal orientation. The enclosure is constructed of multilayer glass composite and is heavily braced to maximize lowfrequency performance. The 14-gauge stainless steel grille, backed with open cell foam and stainless steel mesh, provides excellent protection in the harshest environments. The system is equipped with a 400 W 70/100V transformer. A heavy-duty stainless steel U-type mounting bracket is included and allows for easy installation on flat surfaces or in 90° corners. The AW566 is part of JBL's AE Series, a versatile family of loudspeakers intended for a wide variety of applications.
- Significantly enhance the sound from your devices and drives, get immersed in sound quality
- 8 Ohm impedance extracts maximum power so you will get more output from your speakers
- Hear every detail crisp and clear with a frequency response of 54 Hz-18 kHz
- Knock yourself out with 600 W RMS power
- 15" woofer driver size allows better stereo imaging with maximum sound feasibility
- 1.50" tweeter driver size provides crispier, well-detailed sound with maximum productivity
- Delivers reliable sound with 18 kHz maximum frequency response
- 1.10 kHz maximum crossover frequency effectively splits audio signals to ensure delivery of better and dependable audio ranges
- 100 dB sensitivity for efficient conversion of power into sound to produce adequate audio output
- 19.1" height for efficient frequency access and optimal operation
Quick Specifications
- Product Series
- AE
- Product Model
- AW566
- Product Type
- Speaker
- Crossover Type
- 2-way
- RMS Output Power
- 600 W
- PMPO Output Power
- 2400 W
- Woofer Driver Size
- 15"
- Tweeter Driver Size
- 1.50"
