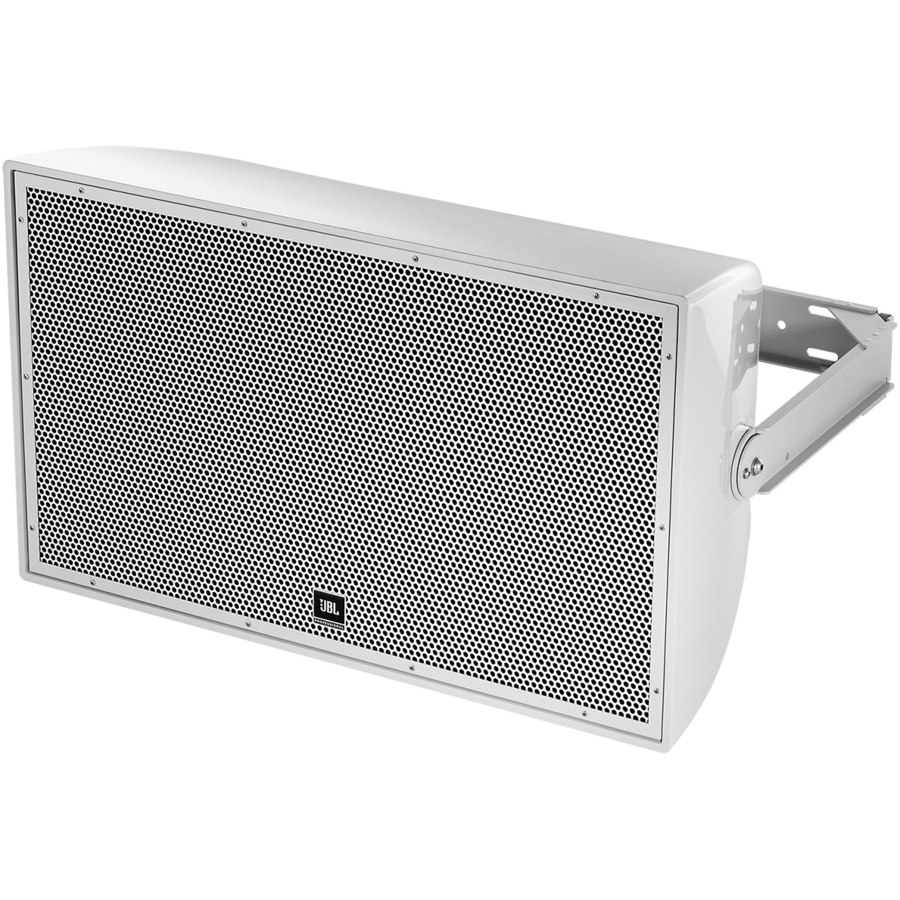

JBL Professional AW566-LS 2-way Outdoor Speaker - 400 W RMS - Gray
Manufacturer: Harman International Industries, Inc
Mfr. Part: AW566-LS
1600 W (PMPO) - 15" - 1.50" - 89 Hz to 18 kHz - 8 Ohm
About This Product
Overview
Parts are sealed on LS models (non-LS photo shown).
High Power 2-Way All Weather Loudspeaker with 1 x 15"" LF & Rotatable Horn for Life Safety Applications
High Power 2-Way All Weather Loudspeaker with 1 x 15"" LF & Rotatable Horn for Life Safety Applications
The AW566-LS is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 60° x 60° coverage. The loudspeaker system can used in either the vertical or horizontal orientation. This loudspeaker is EN 54-24 Compliant for life safety applications.
- Significantly enhance the sound from your devices and drives, get immersed in sound quality
- The 2-way speakers give smooth and precise production of sound to deliver an ultimate audio experience
- 8 Ohm impedance extracts maximum power so you will get more output from your speakers
- Hear low subs and soaring vocals with a frequency range of sound from 89 Hz-18 kHz
- Experience body-shaking levels without any room-vibrating reverb or excessive heat output with 400 W RMS power
- 15" woofer driver size allows better stereo imaging with maximum sound feasibility
- 1.50" tweeter driver size provides crispier, well-detailed sound with maximum productivity
- Offers great productivity with 18 kHz maximum frequency response
- 100 dB sensitivity for efficient conversion of power into sound to produce adequate audio output
- Lightweight feature for maximum productivity with added dependability
Quick Specifications
- Product Model
- AW566-LS
- Product Type
- Speaker
- Crossover Type
- 2-way
- RMS Output Power
- 400 W
- PMPO Output Power
- 1600 W
- Woofer Driver Size
- 15"
- Tweeter Driver Size
- 1.50"
- Minimum Frequency Response
- 89 Hz
